Development kits for other solutions

xCORE-200 explorer kit

Kit: XK-EVK-XE216
Silicon: XE216-512-TQ128
Downloads: software and documents

The xCORE-200 eXplorerKIT features a 3D accelerometer, a 3-axis gyroscope and six servo interfaces for rapid prototyping of motor and motion control projects. This coupled with a combination of 100/1000 Mbps Ethernet, high speed USB and 53 high performance GPIO make it ideal for a wide range of products, ranging from robotics and motion control to time sensitive networking and digital audio.

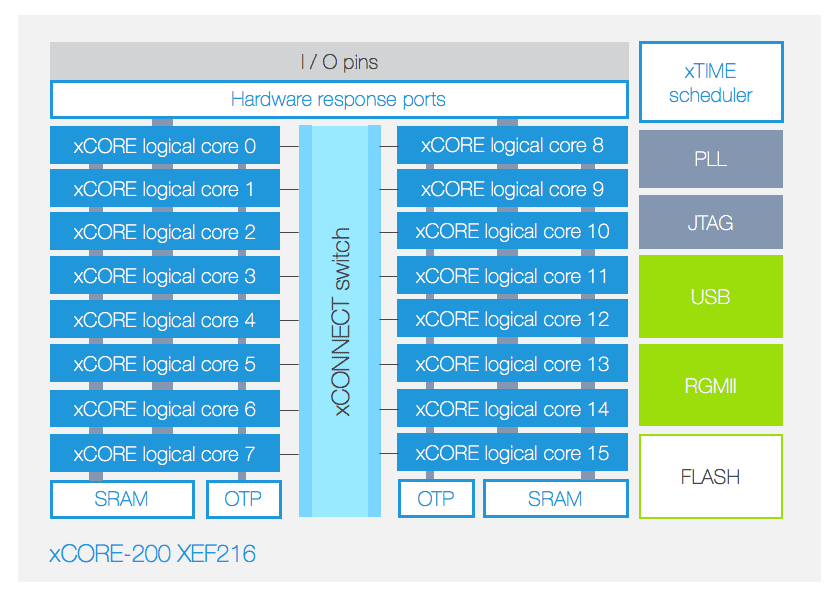

Specification and block diagram

xCORE-200 explorerKIT board

  • 16 logical cores, up to 2000MIPS 512KB SRAM
  • High speed USB interface
  • 10/100/1000 Mbps Ethernet interface
  • 53 high speed GPIO
  • 3D Accelerometer and magnetometer
  • Six servo interfaces
  • Powered from USB micro-B connectors
  • Includes xTAG debug adaptor

xCORE-200 sliceKIT

Kit: XK-SK-X200-ST
Silicon: XE216-512-FB236
Downloads: software and documents

The xCORE-200 sliceKIT delivers the deterministic, responsive processing required to handle a variety of peripheral interfaces, data processing and control tasks. The kit includes Gigabit Ethernet, UART and I2C communications and I/O interfacing. These capabilities can be developed with our library of sliceKIT I/O boards.

Specification

xCORE-200 sliceKIT core board

  • XE216-512-FB236 device
  • 16 logical cores, 512KB SRAM, up to 2000MIPS
  • Flexible core board supporting up to four digital I/O slots for sliceCARDs
  • Gigabit Ethernet sliceCARD for 1000Mb applications; also compatible with existing 10/100Mbps Ethernet slice (XA-SK-E100)
  • GPIO sliceCARD
  • xTAG debug adaptor

Compatible sliceCARDS

  • Audio | XA-SK-AUDIO
  • Ethernet | XA-SK-E100
  • GPIO | XA-SK-GPIO
  • IS-BUS | XA-SK-ISBUS
  • MultiUART | XA-SK-UART-8

Slicecards

Audio slicecard

  • 4 in/4 out audio channels
  • I2S interface to audio codecs and 3.5mm jacks
  • sample rates up to 192kHz
  • SPDIF output; MIDI in / out connectors
  • Part #: XA-SK-AUDIO

Ethernet slicecard

  • 10/100 Ethernet PHY
  • RJ45 connector and MII interface
  • Part #: XA-SK-E100

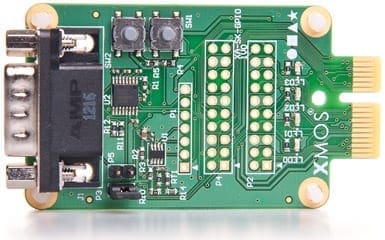

GPIO slicecard

  • 4 LEDs, 2 push buttons
  • RS232 connector with 4-channel ADC
  • Part #: XA-SK-GPIO

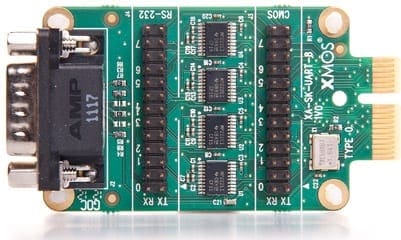

MultiUART slicecard

  • 8 x 115.2 Kbaud full duplex UARTs
  • Connected to two 8-bit ports
  • Part #: XA-SK-UART-8

Debug adapters

xTAG

Kit: XA-XTAG3
Silicon: XE216-512-FB236
Downloads: software and documents

  • Converts between an XMOS XSYS connector and USB 2.0
  • Providing pins for JTAG control, system reset, processor debug
  • One duplex UART link; one duplex serial XMOS Link
  • Part #: XA-XTAG2, XA-XTAG3
