XCORE-200

OVERVIEW

The xcore-200 series is a programmable platform for embedded systems designers who want to differentiate theirproducts with specific interfaces, features and capabilities. Fastprocessing, low latency and inherent flexibility ensure it’s well matched against the high demands of today’s IoT applications.

Unlike conventional microcontrollers, xcore-200 delivers high performance, complete timing determinism and the ability to add differentiating hardware features in a low-cost, easy-to-implement solution. The range offers scalable multicore compute, with 8 to 32 cores across the range – eacho lgical core can execute computational code, advanced DSP, control (I/O).

The series carries three classes of device: the XU/XUF USB enabled microcontrollers, the XL/XLF general purpose microcontrollers and the XE/XEF ethernet enabled microcontrollers. All are supported by the xTIMEcomposer tools and software libraries available from xmos.com.

APPLICATIONS

FEATURE HIGHLIGHTS

Multicore Compute

Performance from 1000 MIPS (at 8 cores) to 4000 MIPS (at 32 cores), with a dual-issue processor pipeline to boost peak compute performance.

On-chip Memory

Between 512kb and 1024kb on-chip SRAM (depending on the chip) can be accessed in a single cycle reducing shared memory requirements by passing data directly between tasks executing on logical cores.

Communication

The xconnect switch acts as a high-speed network, enabling all cores to communicate with each other.

Hardware Response Ports

Flexible, configurable I/O capability: 1-bit, 4-bit, 8-bit, 16-bit and 32-bit ports provide support for serialised and buffered data transfer.

Embedded Flash

Each member of the xCORE-200 family has an embedded flash option for applications.

Secure Boot

There is also an area of one-time programmable memory with AES support to implement secure boot functionality.


XU/XUF FEATURES

  • Multicore compute up to 1000MIPS (8 core) and 4000MIPS (32 core performance)
  • Dual processor pipeline to boost peak compute to 4000MIPS and 2000MMACS
  • Up to 1024KB on-chip SRAM memory
  • Integrated USB 2.0 PHY for highspeed host and device operation

XL/XLF FEATURES

  • Multicore compute up to 1000MIPS (8 core) and 2000MIPS (16 core performance)
  • Dual issue processor pipeline to boost peak compute to 2000MIPS and 1000MMACS
  • Up to 512KB on-chip SRAM memory

XE/XEF FEATURES

  • Multicore compute up to 2000MIPS (16 core) and 4000MIPS (32 core performance)
  • Dual processor pipeline to boost peak compute to 4000MIPS and 2000MMACS
  • Up to 1024KB on-chip SRAM memory
  • Integrated USB 2.0 PHY for high- speed host and device operation
  • Integrated Gigabit Ethernet RGMII interface

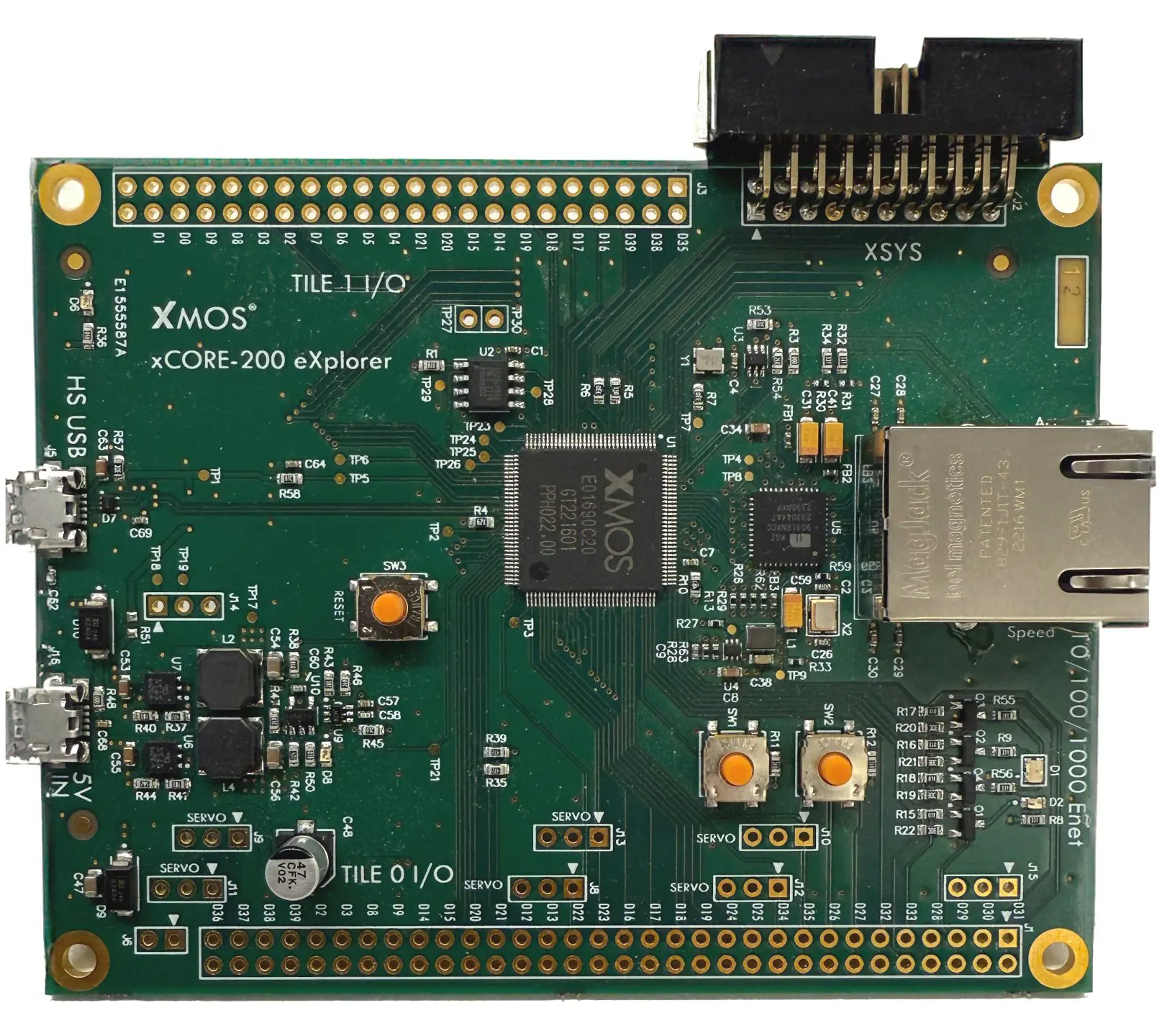

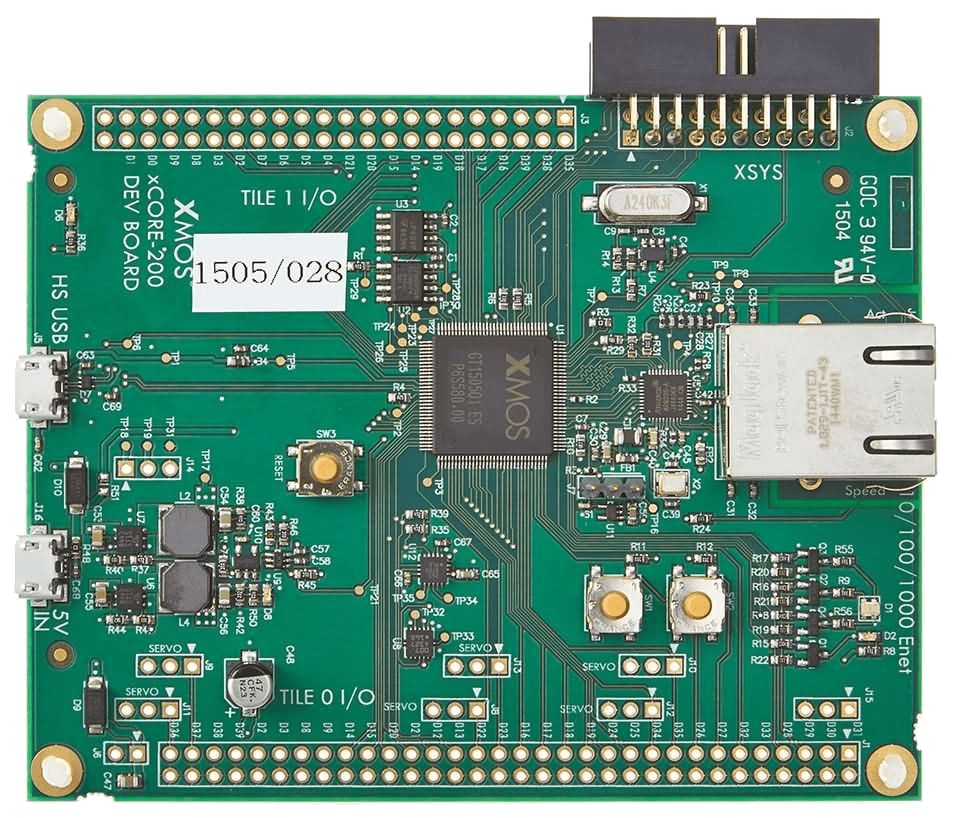

LET’S GET STARTED

Getting started on xcore-200 is easy!
Click the button below and follow the instructions.

BUY

Click the arrow below to view all available packages and datasheets.

XL SERIES

   Features
Part NumberBuyDatasheetLogical CoresIORGMIIUSBRAMFlashOTPMIPS
XL208-128-TQ128 DIGIKEY DATASHEET 8 33 0 0 128 0 8 1000
XL208-256-TQ64 DIGIKEY DATASHEET 8 33 0 0 256 0 8 1000
XLF208-128-TQ64 DIGIKEY DATASHEET 8 33 0 0 128 1024 8 1000
XLF208-256-TQ64 DIGIKEY DATASHEET 8 33 0 0 256 1024 8 1000
XL210-256-TQ128 DIGIKEY DATASHEET 10 88 0 0 256 0 16 2000
XL210-512-TQ128 DIGIKEY DATASHEET 10 88 0 0 512 0 16 2000
XL210-256-FB236 DIGIKEY DATASHEET 10 128 0 0 256 0 16 2000
XL210-512-FB236 DIGIKEY DATASHEET 10 128 0 0 512 0 16 2000
XLF210-256-TQ128 DIGIKEY DATASHEET 10 88 0 0 256 2048 16 2000
XLF210-512-TQ128 DIGIKEY DATASHEET 10 88 0 0 512 2048 16 2000
XLF210-256-FB236 DIGIKEY DATASHEET 10 128 0 0 256 2048 16 2000
XLF210-512-FB236 DIGIKEY DATASHEET 10 128 0 0 512 2048 16 2000
XL212-256-TQ128 DIGIKEY DATASHEET 12 88 0 0 256 0 16 2000
XL212-512-TQ128 DIGIKEY DATASHEET 12 88 0 0 512 0 16 2000
XL212-256-FB236 DIGIKEY DATASHEET 12 128 0 0 256 0 16 2000
XL212-512-FB236 DIGIKEY DATASHEET 12 128 0 0 512 0 16 2000
XLF212-256-TQ128 DIGIKEY DATASHEET 12 88 0 0 256 2048 16 2000
XLF212-512-TQ128 DIGIKEY DATASHEET 12 88 0 0 512 2048 16 2000
XLF212-256-FB236 DIGIKEY DATASHEET 12 128 0 0 256 2048 16 2000
XLF212-512-FB236 DIGIKEY DATASHEET 12 128 0 0 512 2048 16 2000
XL216-256-TQ128 DIGIKEY DATASHEET 16 88 0 0 256 0 16 2000
XL216-512-TQ128 DIGIKEY DATASHEET 16 88 0 0 512 0 16 2000
XL216-256-FB236 DIGIKEY DATASHEET 16 128 0 0 256 0 16 2000
XL216-512-FB236 DIGIKEY DATASHEET 16 128 0 0 512 0 16 2000
XLF216-256-TQ128 DIGIKEY DATASHEET 16 88 0 0 256 2048 16 2000
XLF216-512-TQ128 DIGIKEY DATASHEET 16 88 0 0 512 2048 16 2000
XLF216-256-FB236 DIGIKEY DATASHEET 16 128 0 0 256 2048 16 2000
XLF216-512-FB236 DIGIKEY DATASHEET 16 128 0 0 512 2048 16 2000
XL224-512-FB374 DIGIKEY DATASHEET 24 176 0 0 512 0 32 4000
XL224-1024-FB374 DIGIKEY DATASHEET 24 176 0 0 1024 0 32 4000
XLF224-512-FB374 DIGIKEY DATASHEET 24 176 0 0 512 2048 32 4000
XLF224-1024-FB374 DIGIKEY DATASHEET 24 176 0 0 1024 2048 32 4000
XL232-512-FB374 DIGIKEY DATASHEET 32 176 0 0 512 0 32 4000
XL232-1024-FB374 DIGIKEY DATASHEET 32 176 0 0 1024 0 32 4000
XLF232-512-FB374 DIGIKEY DATASHEET 32 176 0 0 512 2048 32 4000
XLF232-1024-FB374 DIGIKEY DATASHEET 32 176 0 0 1024 2048 32 4000

XU SERIES

   Features
Part NumberBuyDatasheetLogical CoresIORGMIIUSBRAMFlashOTPMIPS
XU208-128-QF48 DIGIKEY DATASHEET 8 27 0 1 128 0 8 1000
XU208-256-QF48 DIGIKEY DATASHEET 8 27 0 1 256 0 8 1000
XU208-128-TQ64 DIGIKEY DATASHEET 8 33 0 1 128 0 8 1000
XU208-256-TQ64 DIGIKEY DATASHEET 8 33 0 1 256 0 8 1000
XUF208-128-QF48 DIGIKEY DATASHEET 8 27 0 1 128 1024 8 1000
XUF208-256-QF48 DIGIKEY DATASHEET 8 27 0 1 256 1024 8 1000
XUF208-128-TQ64 DIGIKEY DATASHEET 8 33 0 1 128 1024 8 1000
XUF208-256-TQ64 DIGIKEY DATASHEET 8 33 0 1 256 1024 8 1000
XUF208-128-TQ128 DIGIKEY DATASHEET 8 33 0 1 128 2048 8 1000
XU210-256-TQ128 DIGIKEY DATASHEET 10 81 0 1 256 0 16 2000
XU210-512-TQ128 DIGIKEY DATASHEET 10 81 0 1 512 0 16 2000
XU210-256-FB236 DIGIKEY DATASHEET 10 128 0 1 256 0 16 2000
XU210-512-FB236 DIGIKEY DATASHEET 10 128 0 1 512 0 16 2000
XUF210-256-TQ128 DIGIKEY DATASHEET 10 81 0 1 256 2048 16 2000
XUF210-512-TQ128 DIGIKEY DATASHEET 10 81 0 1 512 2048 16 2000
XUF210-256-FB236 DIGIKEY DATASHEET 10 128 0 1 256 2048 16 2000
XUF210-512-FB236 DIGIKEY DATASHEET 10 128 0 1 512 2048 16 2000
XU212-256-TQ128 DIGIKEY DATASHEET 12 81 0 1 256 0 16 2000
XU212-512-TQ128 DIGIKEY DATASHEET 12 81 0 1 512 0 16 2000
XU212-256-FB236 DIGIKEY DATASHEET 12 128 0 1 256 0 16 2000
XU212-512-FB236 DIGIKEY DATASHEET 12 128 0 1 512 0 16 2000
XUF212-256-TQ128 DIGIKEY DATASHEET 12 81 0 1 256 2048 16 2000
XUF212-512-TQ128 DIGIKEY DATASHEET 12 81 0 1 512 2048 16 2000
XUF212-256-FB236 DIGIKEY DATASHEET 12 128 0 1 256 2048 16 2000
XUF212-512-FB236 DIGIKEY DATASHEET 12 128 0 1 512 2048 16 2000
XU216-256-TQ128 DIGIKEY DATASHEET 16 81 0 1 256 0 16 2000
XU216-512-TQ128 DIGIKEY DATASHEET 16 81 0 1 512 0 16 2000
XU216-256-FB236 DIGIKEY DATASHEET 16 128 0 1 256 0 16 2000
XU216-512-FB236 DIGIKEY DATASHEET 16 128 0 1 512 0 16 2000
XUF216-256-TQ128 DIGIKEY DATASHEET 16 81 0 1 256 2048 16 2000
XUF216-512-TQ128 DIGIKEY DATASHEET 16 81 0 1 512 2048 16 2000
XUF216-256-FB236 DIGIKEY DATASHEET 16 128 0 1 256 2048 16 2000
XUF216-512-FB236 DIGIKEY DATASHEET 16 128 0 1 512 2048 16 2000
XU224-512-FB374 DIGIKEY DATASHEET 24 176 0 2 512 0 32 4000
XU224-1024-FB374 DIGIKEY DATASHEET 24 176 0 2 1024 0 32 4000
XUF224-512-FB374 DIGIKEY DATASHEET 24 176 0 2 512 2048 32 4000
XUF224-1024-FB374 DIGIKEY DATASHEET 24 176 0 2 1024 2048 32 4000
XU232-512-FB374 DIGIKEY DATASHEET 32 176 0 2 512 0 32 4000
XU232-1024-FB374 DIGIKEY DATASHEET 32 176 0 2 1024 0 32 4000
XUF232-512-FB374 DIGIKEY DATASHEET 32 176 0 2 512 2048 32 4000
XUF232-1024-FB374 DIGIKEY DATASHEET 32 176 0 2 1024 2048 32 4000

XE SERIES

   Features
Part NumberBuyDatasheetLogical CoresIORGMIIUSBRAMFlashOTPMIPS
XE216-512-TQ128 DIGIKEY DATASHEET 16 81 1 1 512 0 16 2000
XE216-512-FB236 DIGIKEY DATASHEET 16 128 1 1 512 0 16 2000
XEF216-512-TQ128 DIGIKEY DATASHEET 16 81 1 1 512 2048 16 2000
XEF216-512-FB236 DIGIKEY DATASHEET 16 128 1 1 512 2048 16 2000
XE232-1024-FB374 DIGIKEY DATASHEET 32 176 2 2 1024 0 32 4000
XEF232-1024-FB374 DIGIKEY DATASHEET 32 176 2 2 1024 2048 32 4000
