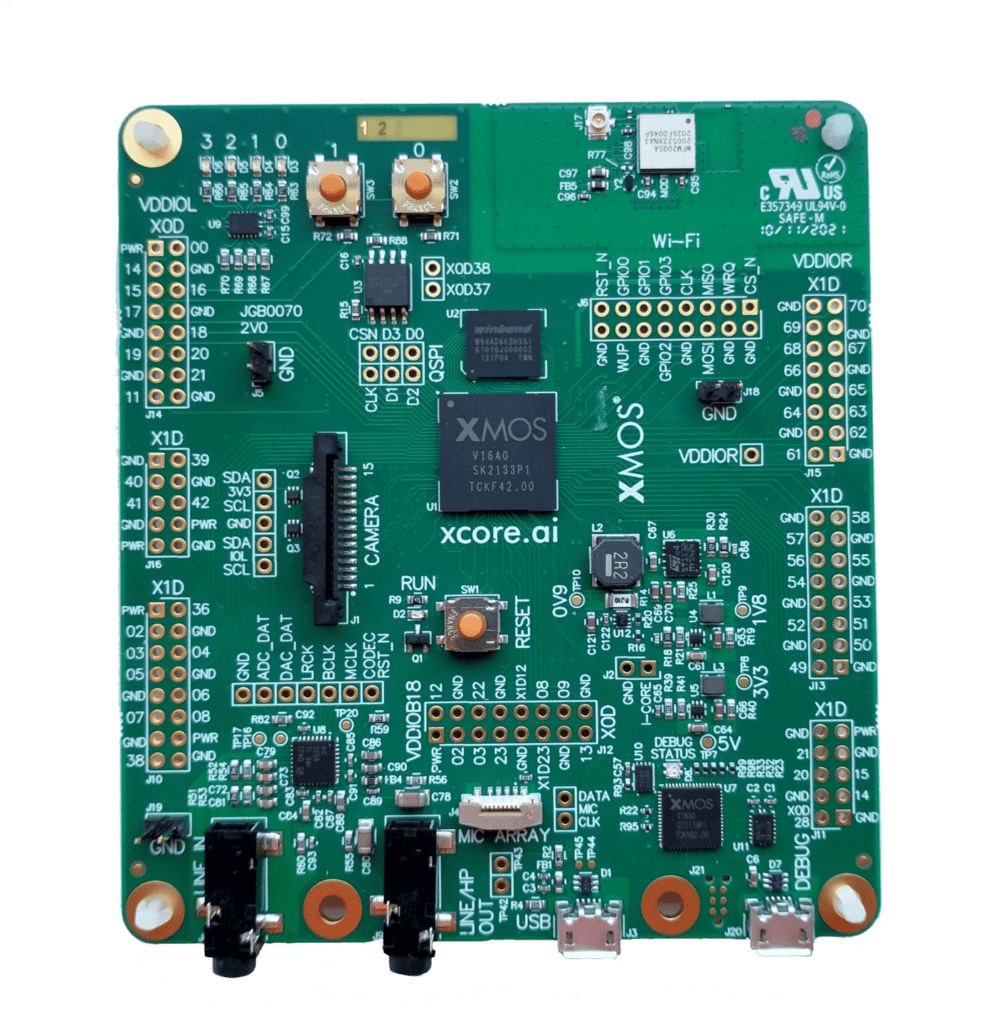

XCORE.AI Evaluation Kit
The XCORE.AI evaluation kit allows testing in multiple application scenarios and provides a good general software development board for simple tests and demos.
Kit Features
- the XCORE.AI crossover processor
- 4 general purpose LEDs
- 2 general purpose push-button switches
- a PDM microphone connector
- audio codec with line-in and line-out jack
- QSPI flash memory
- LPDDR1 external memory
- 58 GPIO connections from tile 0 and 1
- micro USB for power and host connection
- MIPI connector for a MIPI camera
- xSYS2 connector for debug adapter
- a reset switch with LED to indicate running.
Technical Documents
| Title | Version | Date | Download |
|---|---|---|---|
| XU316-1024-FB265 Datasheet | 2.0.0 | 2025-01-13 | html |
| xcore.ai Evaluation Kit Altium and Manufacturing files | 2.0 | 2022-07-19 | zip |
| xcore.ai Evaluation Kit Quick Start | 2022-07-21 | ||
| xcore.ai Evaluation Kit Schematics | 2.0 | 2022-07-26 | |
| xcore.ai Evaluation Kit v2.0 hardware manual | 2V0 | 2024-02-12 |
Application Software
XCORE.AI
A fast and economical platform for the intelligent IoT, which delivers on flexibility without sacrificing performance. Enjoy high performance AI, DSP, I/O and control in a single device.
