Silicon for Voice

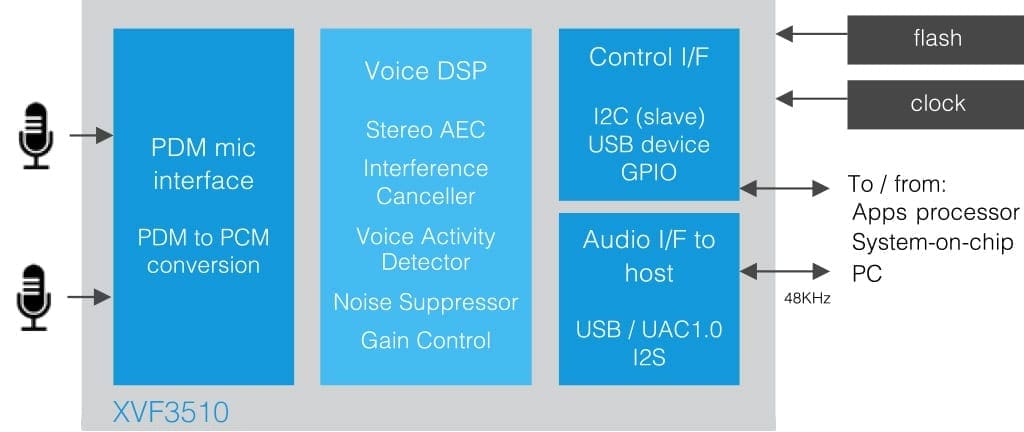

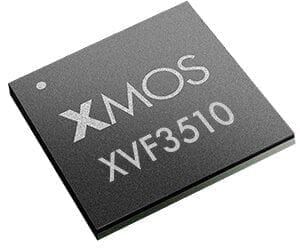

VocalFusion XVF3510 voice processor

Part Number: XVF3510-QF60
Downloads: software and documents

The VocalFusion XVF3510 enables far-field voice capture with close range precision. It’s a turnkey solution for developers who want to embed far-field voice control into smart TVs and set-top boxes. Requiring just 2-microphones, the XVF3510 delivers compelling performance in a BOM-efficient package.

XMOS Acoustic Echo Cancellation, Interference Cancellation, Noise Suppression and Adaptive Delay Estimator algorithms are purpose designed to deliver accurate voice capture from across the room, even in noisy environments, and when content is streaming through the device.

Only available from XMOS

  • Far-field voice processing

    • Full duplex stereo Acoustic Echo Cancellation (AEC) with barge-in
    • Adaptive Delay Estimator
    • Interference Canceller
    • Noise Suppression

    Microphone interface

    • 2-ch digital PDM microphone interface
    • Dual microphone array, 71mm spacing

    Audio interfaces

    • High speed USB2.0 compliant device supporting USB Audio Class 1.0 at 48kHz sample rate
    • I2S audio interface, 48kHz sample rate

    System control options

    • Inter-Integrated Circuit (I2C) serial control interface
    • USB control interface

    Package

    • 7mm x 7mm 60-pin QFN, 0.4mm pitch

VocalFusion XVF3500 stereo-AEC voice processor


Part Number: XVF3500-FB167-C
Downloads: software and documents

Embed a voice front end into a smart TV, soundbar, set-top box or digital media adaptor.

Full duplex, stereo-AEC, noise suppression and deverberation cuts out noise and echo for accurate barge-in and command capture over long distances.


  • Programmable voice processor with stereo-AEC

    • 4-ch digital microphone interface
    • Voice DSP processing
      • Full duplex stereo Acoustic Echo Cancellation (AEC) with barge-in and programmable AEC latency
      • Adaptive beamformer for linear arrays
      • Dereverberation, Noise suppression, Automatic Gain Control
      • Direction of arrival (DOA) indication

    Audio interface

    • Inter-IC Sound (I2S) audio interface, 48kHz sample rate
    • High speed USB2.0 compliant device, 48kHz sample rate
    • Multichannel USB Audio Class 1.0

    Audio output

    • I2S output to DAC, up to 48kHz PCM

    System control options

    • Inter-Integrated Circuit (I2C) serial control interface
    • USB control interface

    167 ball FBGA package 0.5mm pitch

VocalFusion XVF3100 mono-AEC voice processor with wake-detection


Part Number: XVF3100-TQ128-C
Downloads: software and documents

Our mono-AEC voice processor gives you up-close voice capture quality and processing accuracy at far-field range – even in noisy environments.

Ideal if you want to integrate Alexa into kitchen appliances and smart panels for lighting, heating and security products.

  • XVF3100 voice processor

    • Programmable voice processor for far-field handsfree communication
      • 4 microphone adaptive beamformer supporting linear and circular arrays
      • Full duplex AEC with barge-in support (up to 50dB att.)
      • Noise suppression (up to 15dB att.)
      • Speaker independent keyword trigger detection
      • 128 pin TQFP package 0.4mm pitch

    Host interface options

    • High speed USB2.0 compliant device
      • Multichannel USB Audio Class 1.0 16kHz or 48kHz sample rate
      • Control interface
    • Optional I2S interface
      • 16kHz or 48kHz sample rate
      • I2C control interface

    Audio output options

    • I2S output to DAC, 16kHz or 48kHz PCM

VocalFusion XVF3000 mono-AEC voice processor


Part Number: XVF3000-TQ128-C
Downloads: software and documents

Our mono-AEC voice processor gives you up-close voice capture quality and processing accuracy at far-field range – even in noisy environments.

Ideal if you want to integrate Alexa into kitchen appliances and smart panels for lighting, heating and security products.


  • XVF3000 voice processor

    • Programmable voice processor for far-field handsfree communication
      • 4 microphone adaptive beamformer supporting linear and circular arrays
      • Full duplex AEC with barge-in support (up to 50dB att.)
      • Noise suppression (up to 15dB att.)
      • 128 pin TQFP package 0.4mm pitch

    Host interface options

    • High speed USB2.0 compliant device
      • Multichannel USB Audio Class 1.0 16kHz or 48kHz sample rate
      • Control interface
    • Optional I2S interface
      • 16kHz or 48kHz sample rate
      • I2C control interface

    Audio output options

    • I2S output to DAC, 16kHz or 48kHz PCM

The hardware and software listed on this page may be subject to a license agreement – see License Agreements.
