Development kits for other ASR services

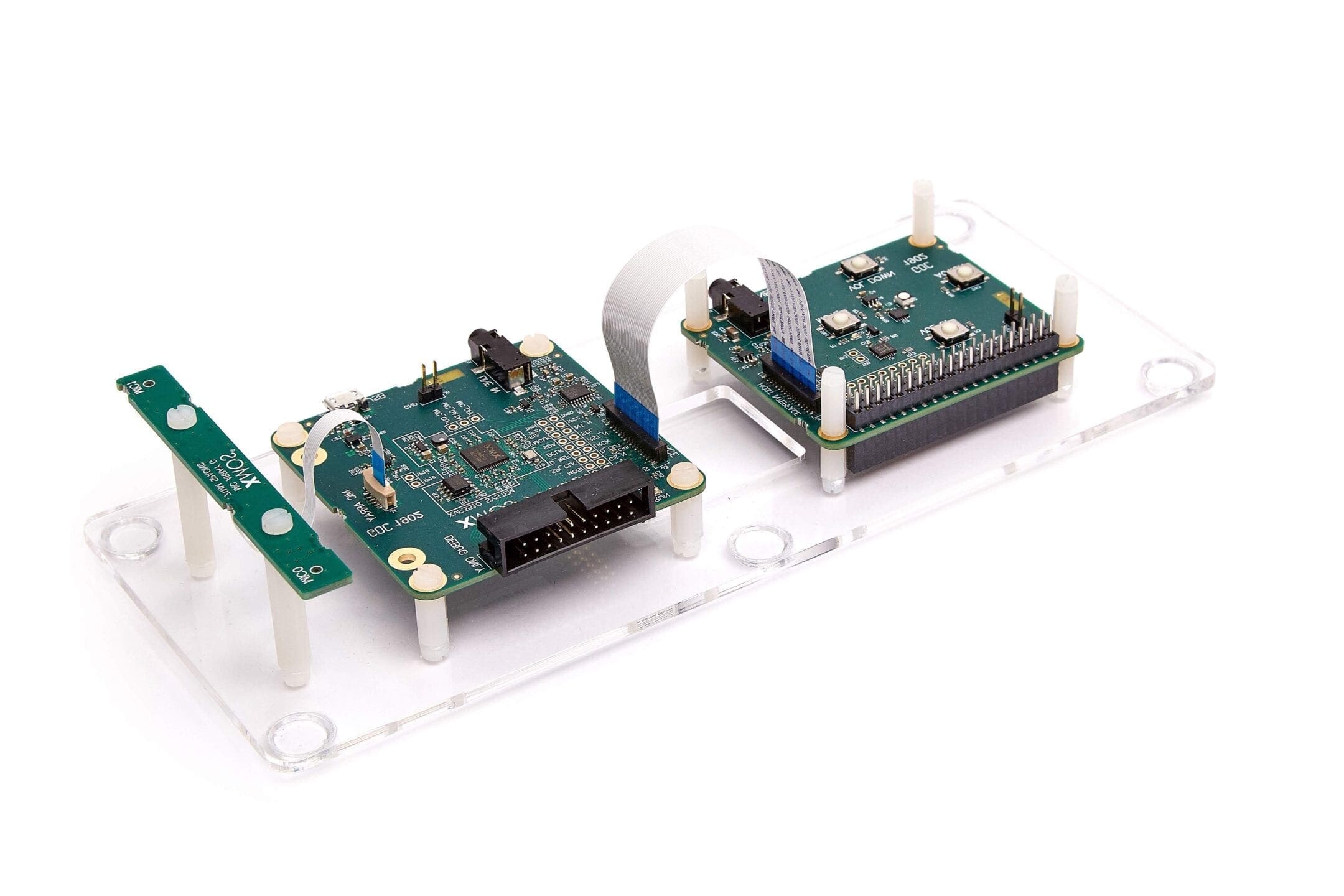

VocalFusion dev kit

Kit: XK-VF3510-L71
Silicon: XVF3510-QF60-C
Downloads: software and documents

2-mic, turnkey solution for smart TVs, soundbars and set-top boxes. Delivers far-field voice capture with close range precision.

The Interference Canceller nulls point noise to cancel out typical noise in the soundscape, Stereo Acoustic Echo Cancellation suppresses unwanted speaker echo and enables barge-in across audio playing from the device, while noise suppression removes background noise from other devices. Our Automatic Delay Estimator adjusts audio reference signal latency dynamically, ensuring the Acoustic Echo Cancellation algorithms deliver a smooth, real-time barge-in experience.

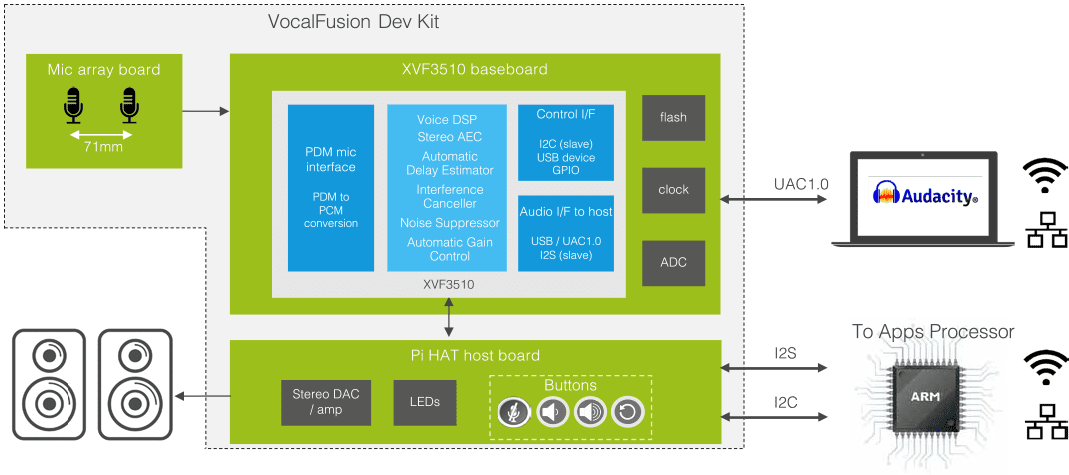

Specification and block diagram

XVF3510 processor base board

  • XVF3510 voice processor
  • Micro-USB connector for power and USB device connectivity
  • Low jitter, audio quality clock
  • Line-in port
  • xTAG interface for JTAG debug

Dual microphone array daughter board

  • 2 x Infineon IM69D130 PDM (Pulse Density Modulation) MEMS microphones
  • 71mm inter-mic spacing

Raspberry Pi HAT adapter board

  • I2S audio and I2C connectivity
  • 24-bit stereo DAC
  • 4 user controlled buttons and 2 LEDs

XVF3510 voice processor (for far-field voice capture)

  • Full duplex stereo acoustic echo cancellation (AEC)
  • Barge-in
  • 2 channel digital microphone interface
  • Interference canceller
  • Noise suppression
  • Automatic Delay Estimator Control (ADEC)
  • Automatic Gain Control (AGC)

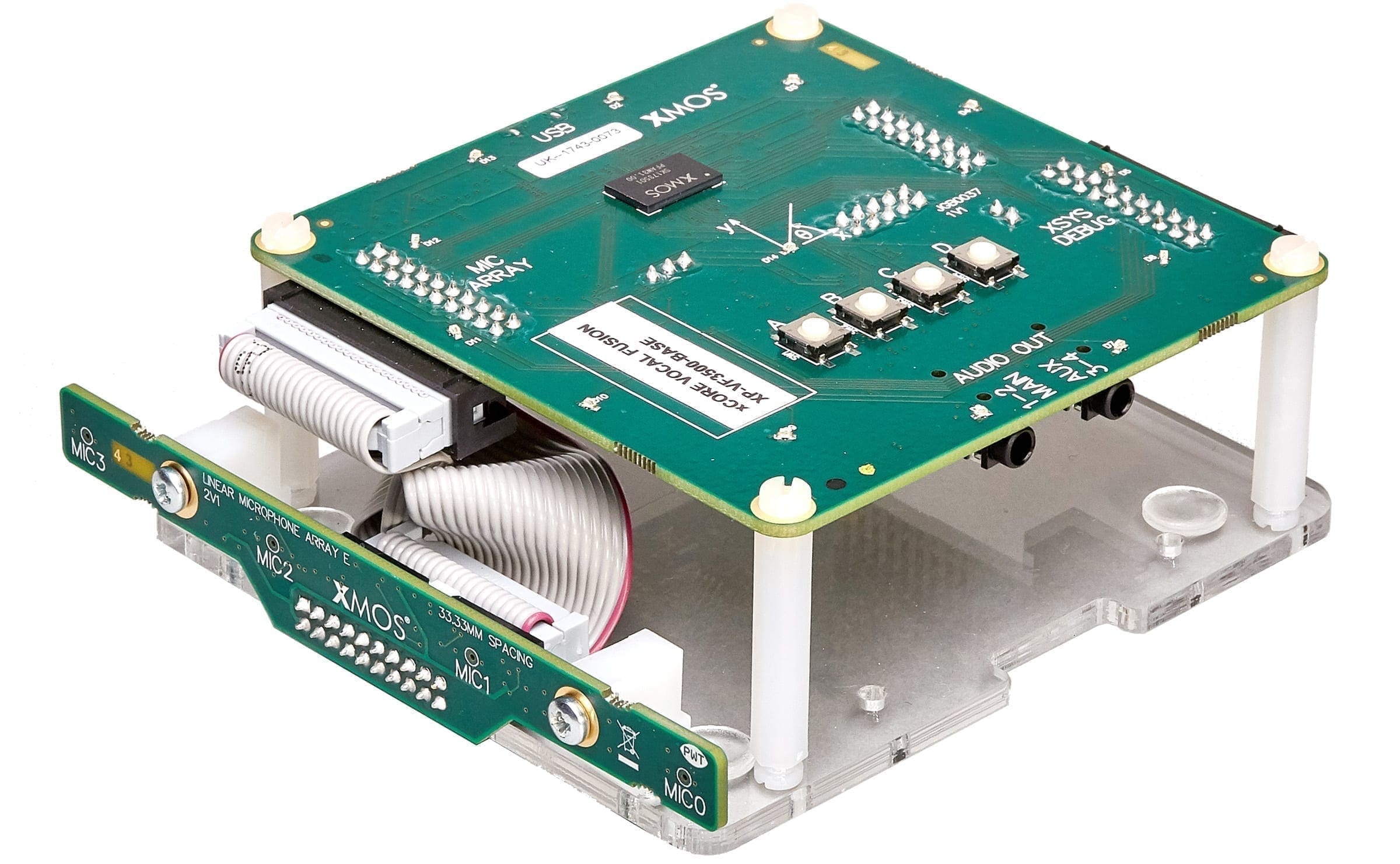

VocalFusion 4-mic stereo-AEC development kit

Kit: XK-VF3500-L33
Silicon: XVF3500-FB167-C
Downloads: software and documents

Embed a voice front end into a smart TV, soundbar, set-top box or digital media adaptor.

Full duplex, stereo-AEC, noise suppression and deverberation cuts out noise and echo for accurate barge-in and command capture over long distances.

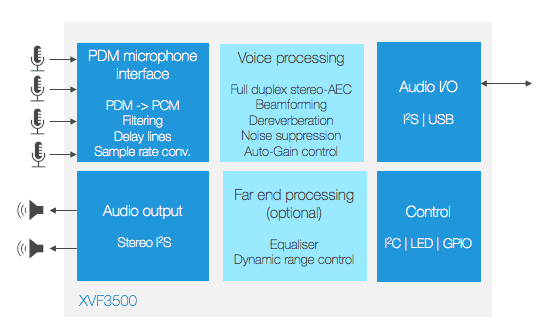

Specification and block diagram

XVF3500 processor board

  • XVF3500 voice processor
  • Micro-USB connector for power (optional USB2.0 device connectivity)
  • Low jitter, audio quality clock
  • Stereo DAC with integrated headphone amplifier
  • 4 configurable user input buttons
  • 13 user-controlled LEDs
  • xTAG interface for JTAG debug

XVF3500 voice processor (programmable for far-field voice capture)

  • Full duplex stereo acoustic echo cancellation (AEC)
  • Programmable AEC latency
  • Barge-in
  • 4 channel digital microphone interface
  • Adaptive beamformer
  • Dereverberation
  • Noise suppression
  • Automatic Gain Control (AGC)
  • Direction of arrival indication (DOA)

Compact microphone array

  • Linear, 100mm long
  • 4 x Infineon IM69D130 PDM (Pulse Density Modulation) MEMS microphones
  • 33.33mm inter-microphone spacing

Connectivity

  • Inter-Integrated Sound (I2S) audio interfaces
  • Inter-Integrated Circuit (I2C) serial or USB control interface
  • High speed USB2.0 compliant
  • Multi-channel USB audio class 1.0
  • 16-ball FBGA package 0.5mm pitch

VocalFusion 4-mic mono-AEC development kit

Kit: XK-VF3100-L33
Silicon: XVF3100-TQ128-C
Downloads: software and documents

Our mono-AEC voice processor gives you up-close voice capture quality and processing accuracy at far-field range – even in noisy environments.

Ideal if you want to integrate a voice interface into kitchen appliances and smart panels for lighting, heating and security products.

Specification and block diagram


XVF3000 processor board

  • Micro-USB connector for power (optional USB2.0 device connectivity)
  • Low jitter, audio quality clock
  • DAC with integrated headphone amplifier
  • 4 configurable user input buttons
  • 13 user-controlled LEDs
  • xTAG interface for JTAG debug

XVF3000 voice processor (programmable for far-field voice capture)

  • Full duplex acoustic echo cancellation (AEC)
  • Barge-in
  • 4-microphone adaptive beamformer
  • Dereverberation
  • Noise suppression Automatic Gain Control (AGC)
  • Direction of arrival (DOA) indication

Microphone Array

  • Linear, 100mm long
  • 4 x Infineon IM69D130 PDM (Pulse Density Modulation) MEMS microphones
  • 33.33mm inter-mic spacing

Connectivity

  • Raspberry Pi header
  • Inter-Integrated Sound (I2S) audio interfaces
  • Inter-Integrated Circuit (I2C) serial control interface
  • High speed USB2.0 compliant
  • Multi-channel USB audio class 1.0
  • 128-pin TQFP package 0.4 pitch

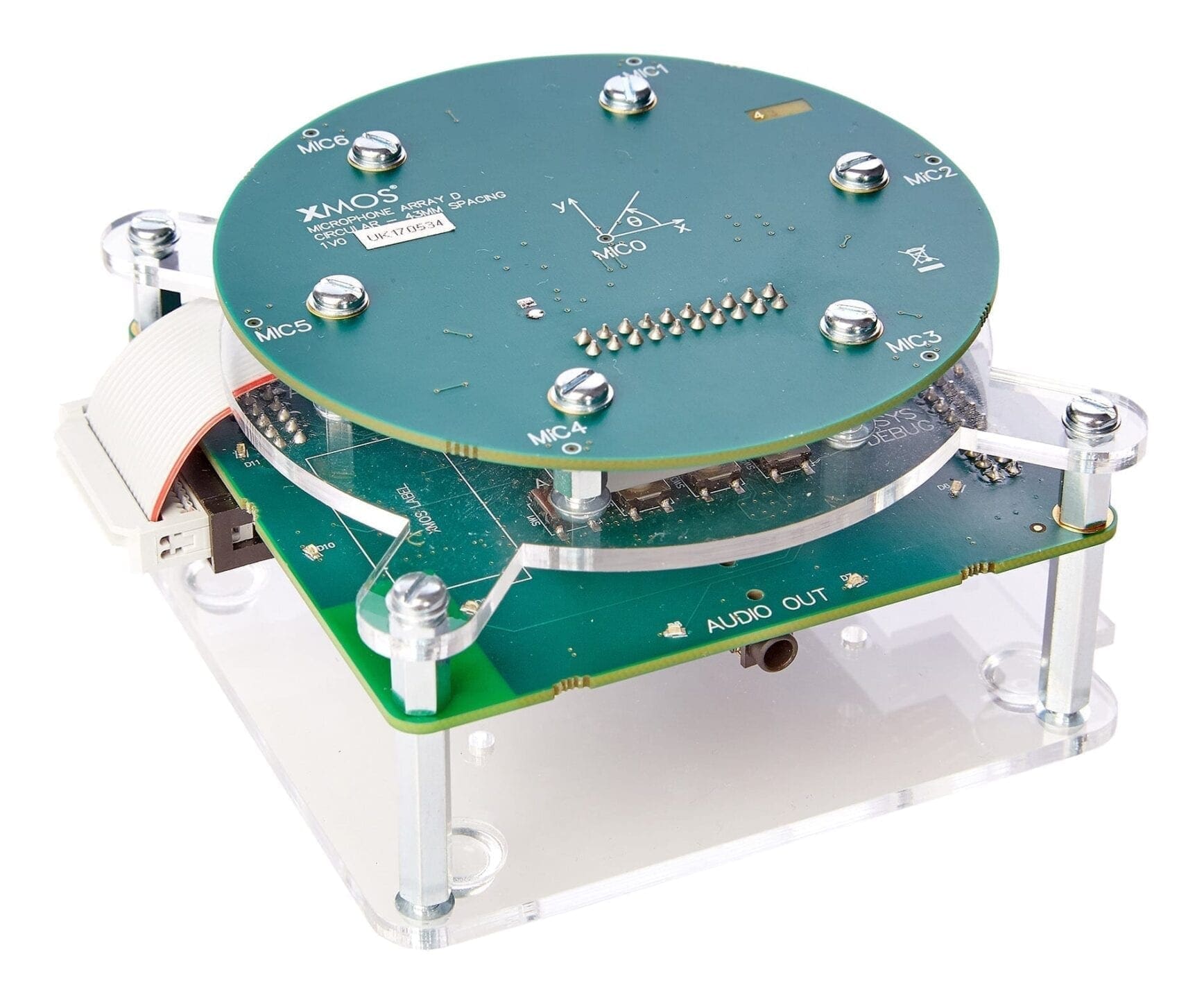

VocalFusion 4-mic mono-AEC circular development kit

Kit: XK-VF3100-C43
Silicon: XVF3100-TQ128-C
Downloads: software and documents

Our mono-AEC voice processor gives you up-close voice capture quality and processing accuracy at far-field range – even in noisy environments.

Ideal if you want to integrate a voice interface into kitchen appliances and smart panels for lighting, heating and security products.

Specification and block diagram


XVF3000 processor board

  • Micro-USB connector for power (optional USB2.0 device connectivity)
  • Low jitter, audio quality clock
  • DAC with integrated headphone amplifier
  • 4 configurable user input buttons
  • 13 user-controlled LEDs
  • xTAG interface for JTAG debug

XVF3000 voice processor (programmable for far-field voice capture)

  • Full duplex acoustic echo cancellation (AEC)
  • Barge-in
  • 4-microphone adaptive beamformer
  • Dereverberation
  • Noise suppression Automatic Gain Control (AGC)
  • Direction of arrival (DOA) indication

Microphone Array

  • Linear, 100mm long
  • 4 x Infineon IM69D130 PDM (Pulse Density Modulation) MEMS microphones
  • 33.33mm inter-mic spacing

Connectivity

  • Raspberry Pi header
  • Inter-Integrated Sound (I2S) audio interfaces
  • Inter-Integrated Circuit (I2C) serial control interface
  • High speed USB2.0 compliant
  • Multi-channel USB audio class 1.0
  • 128-pin TQFP package 0.4 pitch

The hardware and software listed on this page may be subject to a license agreement – see License Agreements.
