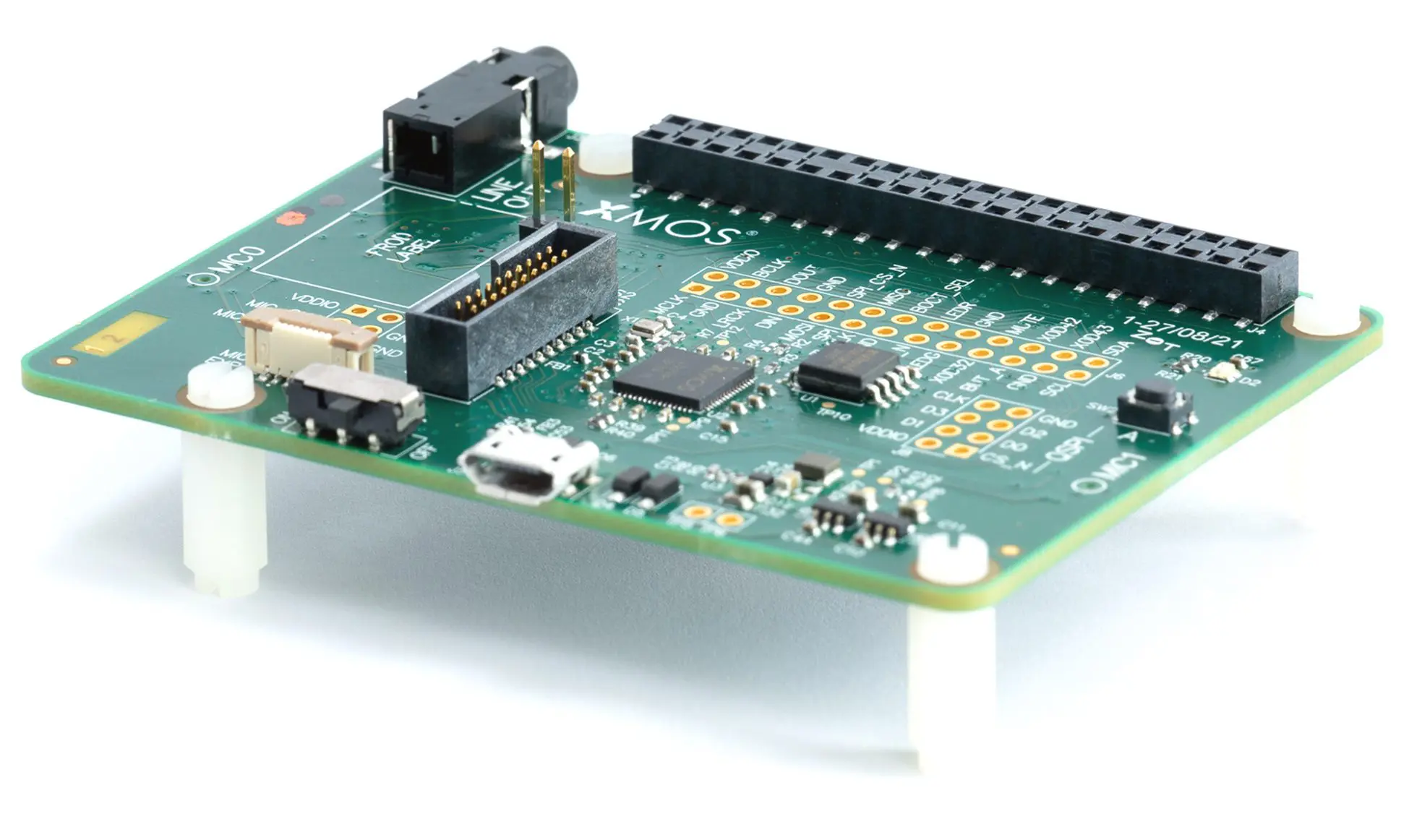

Voice Reference Design Evaluation Kit

Overview

The voice reference design evaluation kit can be used as a Raspberry Pi HAT for integration with example AVS client or used standalone as a USB accessory to a host system.
Features include:

  • XU316-1024-QF60A-C24 xcore.ai processor
  • Raspberry Pi HAT connector
  • 2 x Infineon IM69D130 MEMS mics
  • 71mm inter-mic spacing
  • Microphone mute switch
  • Speaker output (Line level)
  • USB / I2S host interface support

Price: from $195

RegionDistributorBuy
GLOBALDigi-Key CorporationBuy
North AmericaSymmetry ElectronicsBuy
APACLestina International Ltd (HK)Buy
KOREABig Shine Korea Co LtdBuy

TECHNICAL DOCUMENTS

TitleVersionDateDownload
XU316-1024-QF60A Datasheet 2023-08-29 pdf
XK-VOICE-L71 PCB Design files v1.0 2021-11-11 zip
XK-VOICE-L71 Hardware Manual 2023-04-12 zip
