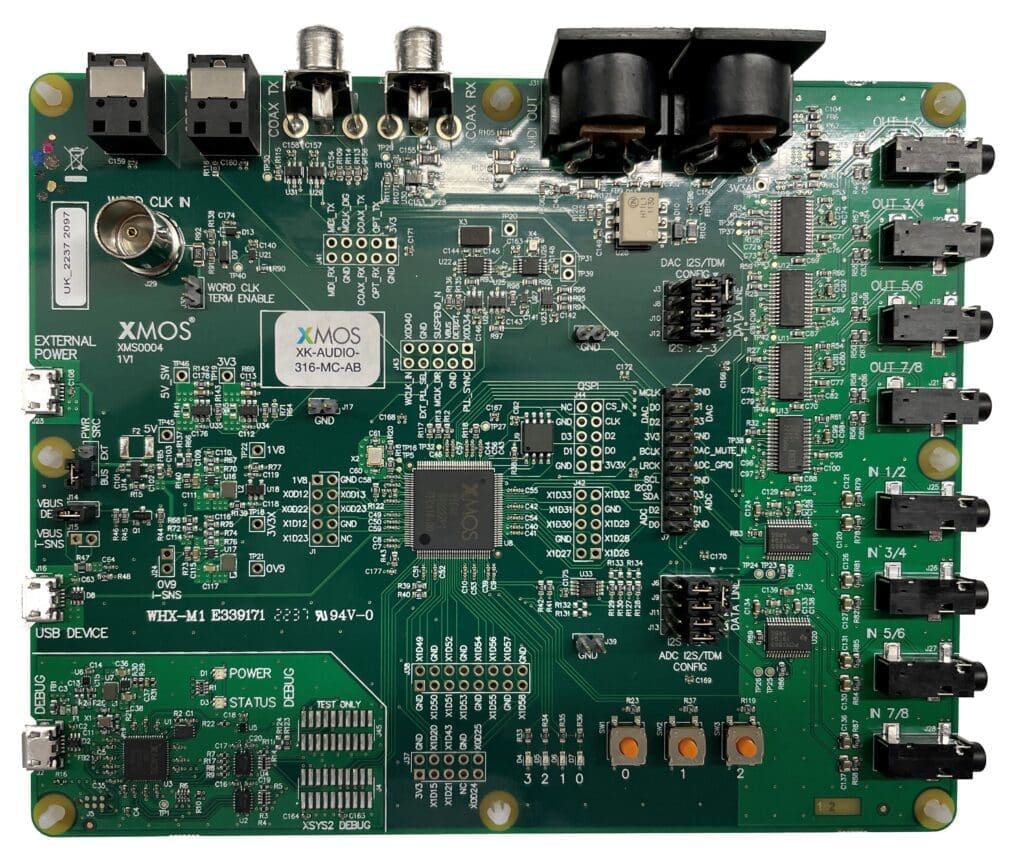

USB MULTICHANNEL AUDIO EVALUATION KIT

Overview

The xcore.ai multichannel audio platform provides a scalable and flexible hardware and software solution for a wide range of consumer and professional audio products.

The multichannel audio platform is based on an xcore.ai multicore controller; the XU316-1024-TQ128-C24, and includes a high-speed USB 2.0 PHY, flexible GPIO and 16 logical cores that deliver up to 2400 MIPS of deterministic processing power.
The guaranteed Hardware-Response time of xcore technology always ensures lowest latency bit perfect audio streaming to and from the USB host.
The XMOS XTC development tools enable quick customisation for product differentiating features.

Price: from $245

RegionDistributorBuy
GLOBALDigi-Key CorporationBuy
North AmericaSymmetry ElectronicsBuy
KOREASepion Technology IncBuy
Big Shine Korea Co LtdBuy

FEATURE HIGHLIGHTS

USB Compliant

  • High-speed USB 2.0 compliant device with low loopback latency.

Bit-perfect audio transfer

  • High resolution audio playback delivered through PCM up to 192kHz, 32 bits.
  • Flexible clocking architecture supports multiple synchronisation configurations and low jitter, high quality audio capture and playback.

Rapid development

  • Source code reference software and integrated suite of development tools mean royalty-free deployment and a fast time to market.

Flexible I/O

  • Simultaneous multi-channel playback and record from host interface with support for over 8 channels.
  • Flexible, deterministic and responsive processing power, easily customisable to meet specific product requirements.

TECHNICAL DOCUMENTS

TitleVersionDateDownload
USB Audio Software v8.1.0 2024-06-04 zip
xcore.ai Multichannel Audio Platform Hardware Manual 1V1 2022-11-21 pdf
xcore.ai Multichannel Audio Platform Design Files 1V1 2022-11-22 zip
USB Audio User Guide v8.1.0 2024-06-04 pdf
AN01008: Extending USB Audio with Digital Signal Processing 2023-10-05 pdf

APPLICATION SOFTWARE

USB MULTICHANNEL AUDIO

Our flexible microcontrollers are ideal for rapid product design and innovation in the professional multichannel audio and consumer Hi-Res USB audio markets. Whether you require audio playback, recording, or a combination of both, our multichannel and USB audio solutions enable on-time bit-perfect audio from multiple inputs.
