Development Kits

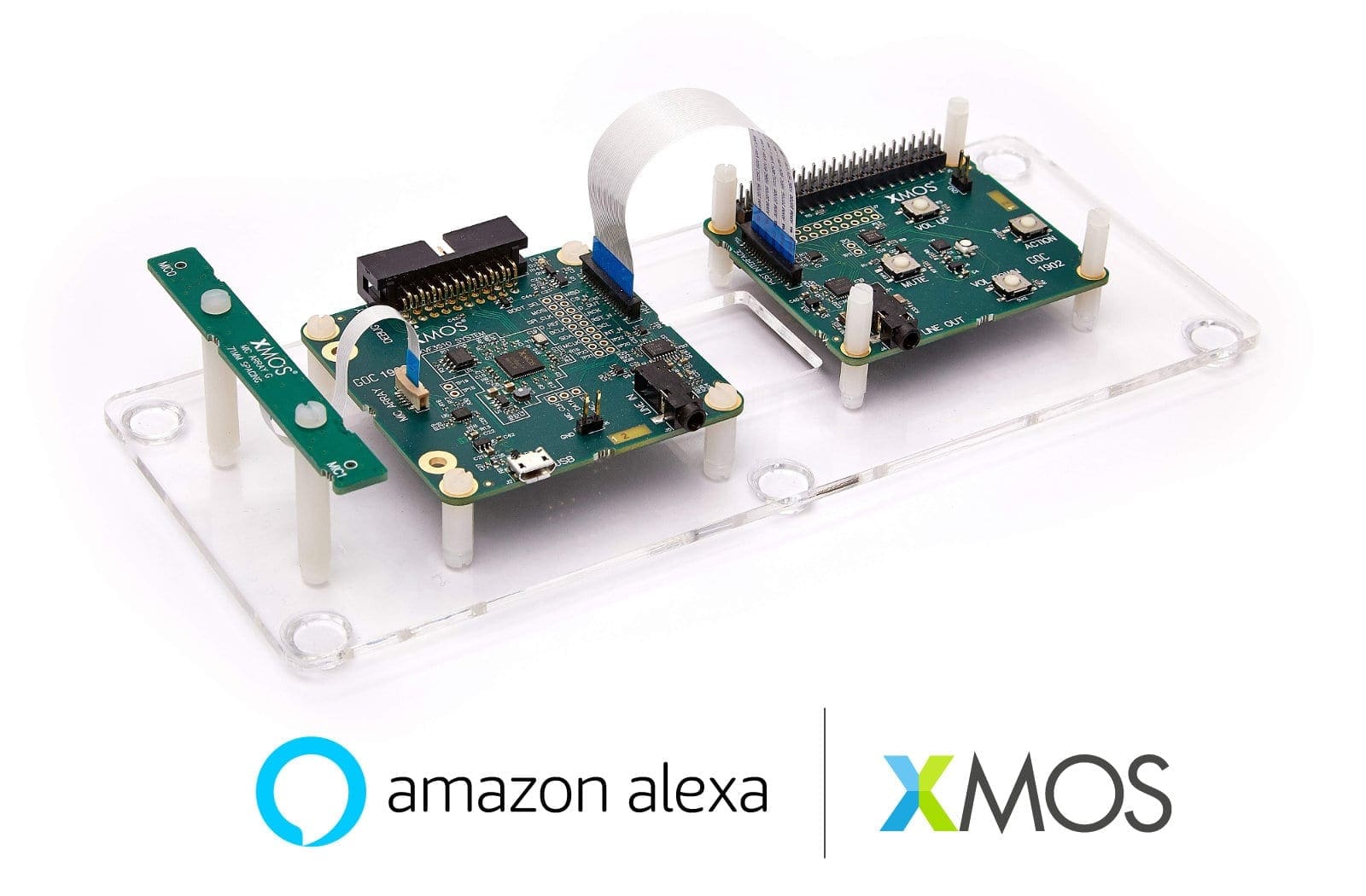

VocalFusion 4-mic stereo-AEC dev kit for Amazon AVS

Kit: XK-VF3500-L33-AVS
Silicon: XVF3500 voice processor

  • Full duplex stereo acoustic echo cancellation (AEC)
  • Linear, 100mm mic array, 4 x IM69D130 PDM MEMS mics
  • Raspberry Pi header; Alexa client running on RPi
  • 167-pin FBGA package 0.5mm pitch

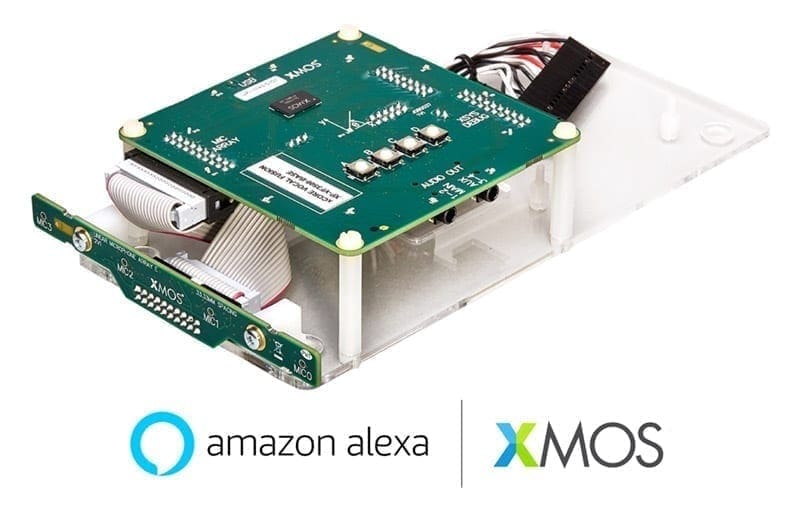

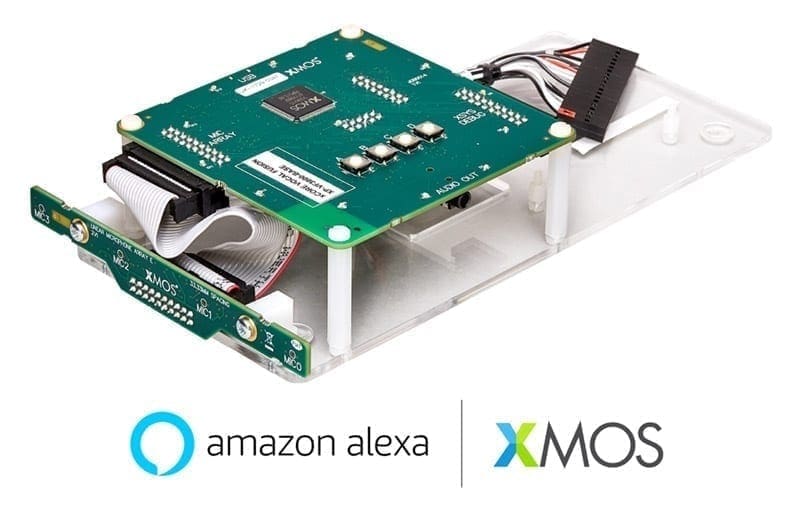

VocalFusion 4-mic mono-AEC dev kit for Amazon AVS

Kit: XK-VF3000-L33-AVS
Silicon: XVF3000 voice processor

  • Full duplex mono acoustic echo cancellation (AEC)
  • Linear, 100mm mic array, 4 x IM69D130 PDM MEMS mics
  • Raspberry Pi header; Alexa client running on RPi
  • 128-pin TQFP package 0.4mm pitch

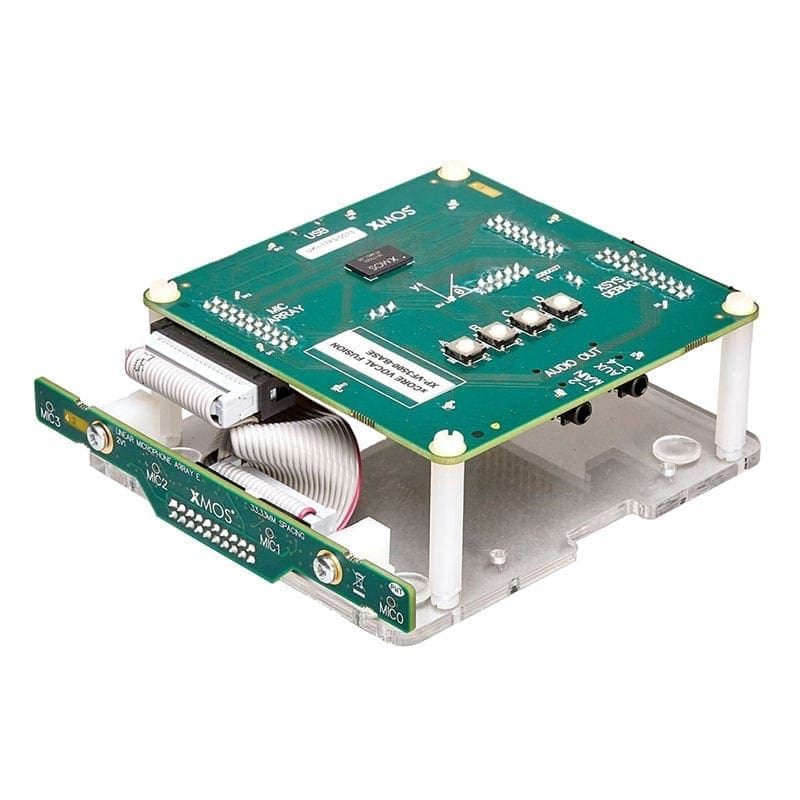

VocalFusion 4-mic stereo-AEC dev kit

Kit: XK-VF3500-L33
Silicon: XVF3500 voice processor

  • Full duplex stereo acoustic echo cancellation (AEC)
  • Linear, 100mm mic array, 4 x IM69D130 PDM MEMS mics
  • I2S audio interface, I2C or USB control interface
  • 167-pin FBGA package 0.5mm pitch

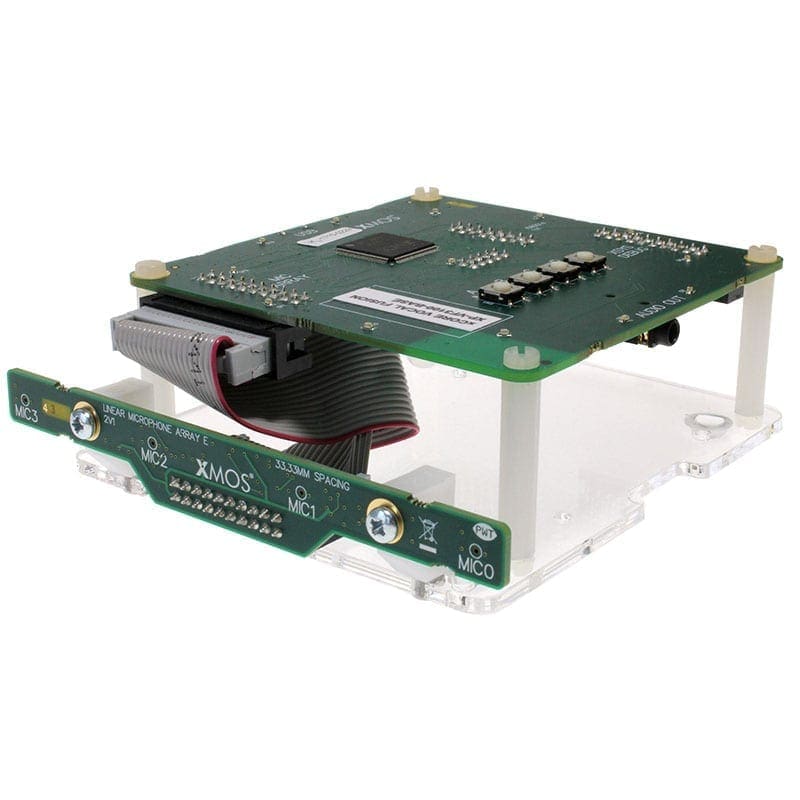

VocalFusion 4-mic mono-AEC linear dev kit

Kit: XK-VF3100-L33
Silicon: XVF3100 voice processor

  • Full duplex mono acoustic echo cancellation (AEC)
  • Linear, 100mm mic array, 4 x IM69D130 PDM MEMS mics
  • I2S audio interface, I2C or USB control interface
  • 128-pin TQFP package 0.4mm pitch

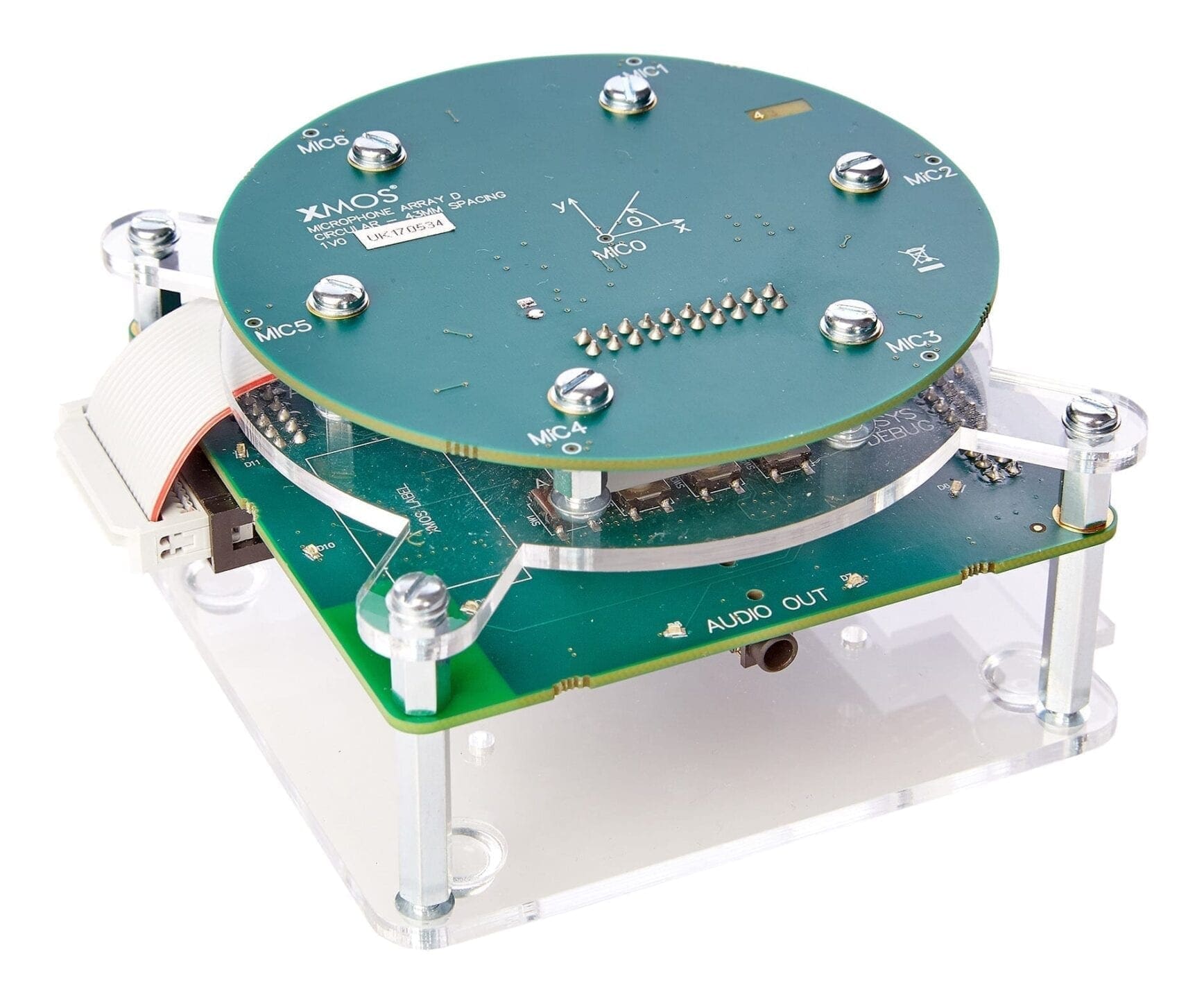

VocalFusion 4-mic mono-AEC circular dev kit

Kit: XK-VF3100-C43
Silicon: XVF3100 voice processor

  • Full duplex mono acoustic echo cancellation (AEC)
  • Circular array, 75×43 rectangle, 4 x IM69D130 PDM MEMS mics
  • I2S audio interface, I2C or USB control interface
  • 128-pin TQFP package 0.4mm pitch

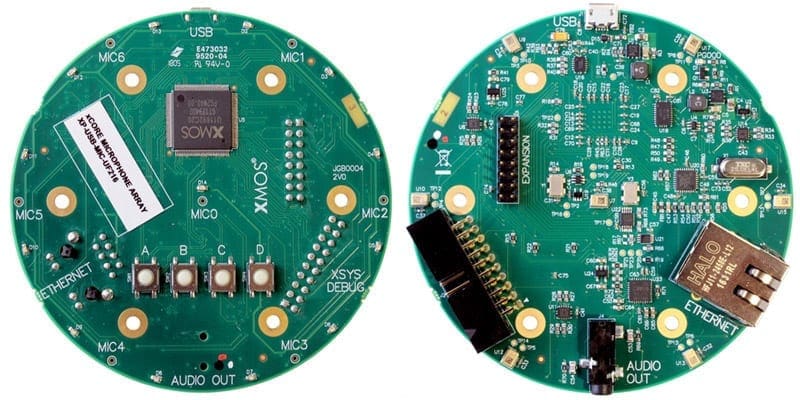

xCORE array microphone

Kit: XK-USB-MIC-UF216
Silicon: XU216-512-TQ128 multicore microcontroller

  • PDM to PCM format conversion, four channel decimator
  • Circular mic array, 7 x IM69D130 PDM MEMS mics
  • USB Audio 2.0 compliant device
  • Programmable output sample rate: 7.35 – 48kHz

xCORE-200 multichannel audio platform

Kit: XK-AUDIO-216-MC-AB
Silicon: XE216-TQ128 multicore microcontroller

  • USB Audio 2.0 device with USB Audio 1.0 fall-back
  • Asynchronous isochronus bit perfect audio transfer to/from host
  • Native DSD64 and DSD128; DoP64 and DoP128
  • 802.1AS, 802.1Qav, 802.1Qat, IEEE 1722, 1722.1 compliant

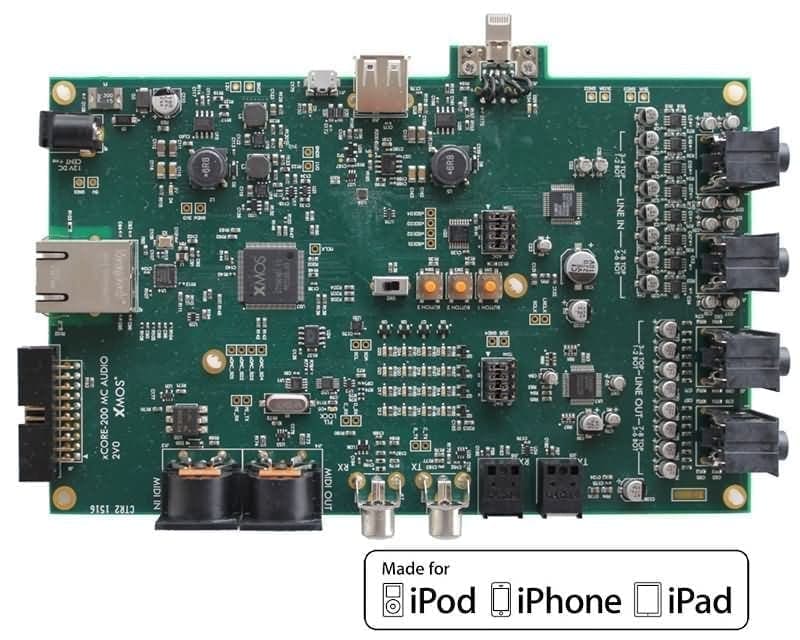

xCORE-200 multichannel audio platform MFi

Kit: XK-AUDIO-216-MC-ABL
Silicon: XE216-TQ128 multicore microcontroller

  • USB Audio 2.0 device with USB Audio 1.0 fall-back
  • Self-powered (with Apple charging) or bus-powered
  • Asynchronous isochronus bit perfect audio transfer to/from host
  • Native DSD64 and DSD128; DoP64 and DoP128
  • 802.1AS, 802.1Qav, 802.1Qat, IEEE 1722, 1722.1 compliant

xCORE-200 explorer kit

Kit: XK-EVK-XE216
Silicon: XE216-512-TQ128 multicore microcontroller

  • 16 logical cores, up to 2000MIPS 512KB SRAM
  • High speed USB and 10/100/1000 Mbps Ethernet interfaces
  • 3D Accelerometer and magnetometer; 6 servo interfaces
  • Powered from USB micro-B connectors

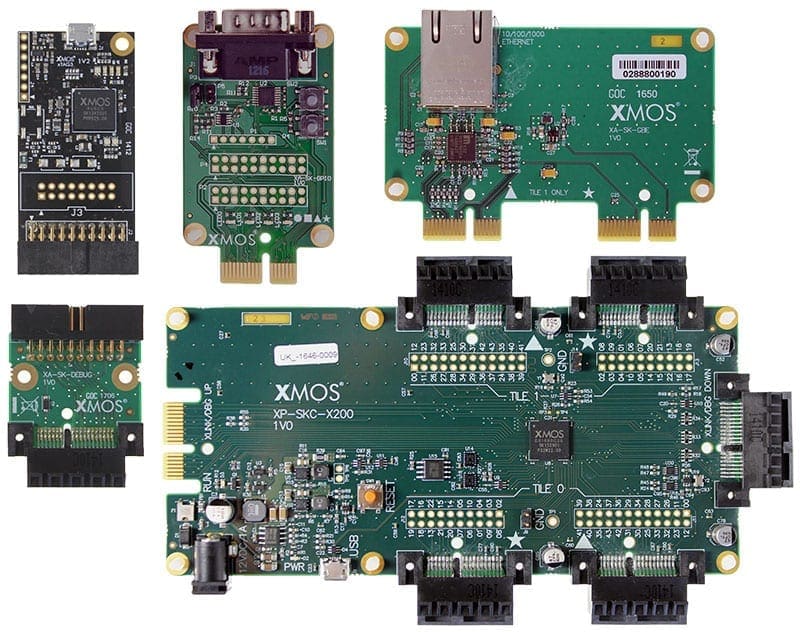

xCORE-200 slicekit

Kit: XK-SK-X200-ST
Silicon: XE216-512-FB236 multicore microcontroller

  • 16 logical cores, up to 2000MIPS 512KB SRAM
  • Flexible core board, 4 digital I/O slots for slicecards
  • Gigabit Ethernet sliceCARD for 1000Mb applications
  • GPIO slicecard

Slicecards

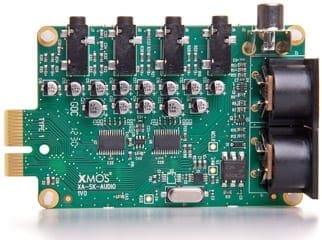

Audio slicecard

Kit: XA-SK-AUDIO

  • 4 in/4 out audio channels
  • I2S interface to audio codecs and 3.5mm jacks
  • sample rates up to 192kHz
  • SPDIF output; MIDI in / out connectors

Ethernet slicecard

Kit: XA-SK-E100

  • 10/100 Ethernet PHY
  • RJ45 connector and MII interface

GPIO slicecard

Kit: XA-SK-GPIO

  • 4 LEDs, 2 push buttons
  • RS232 connector with 4-channel ADC

MultiUART slicecard

Kit: XA-SK-UART-8

  • 8 x 115.2 Kbaud full duplex UARTs
  • Connected to two 8-bit ports

Debug adapters

xTAG

Kit: XA-XTAG2, XA-XTAG3

  • Converts between an XMOS XSYS connector and USB 2.0
  • Providing pins for JTAG control, system reset, processor debug
  • One duplex UART link; one duplex serial XMOS Link
