ETHERNET AVB

XMOS for AVB real-time networking

XMOS multicore microcontrollers are ideally suited to real-time audio networks due to the ability to break down each of the inputs/outputs into separate tasks that behave in a completely predictable way. Individual logical cores are used to manage talker inputs and listener output, all managed by a global clock. Input data is timestamped and output on request by the deterministic architecture that is driven by events instead of interrupted tasks, providing jitter-free data transport between switches.

The configurability of XMOS devices means that the audio endpoint solutions are not I2S specific, the multicore microcontrollers can be reconfigured to support different interfaces such as CAN and S/PDIF making the network extremely flexible.

XMOS recently added daisy-chaining capabilities to its AVB product range. This video shows a short demonstration, based on our sliceKIT development hardware.

The lowest cost AVB platform Royalty free Ethernet AVB
Intregates DSP and interfacing
No O/S or external RAM required
Zero development tools cost
From $5 for Ethernet wire to I2S
Unmatched flexibility Scalable from 2-32 channels
Talker/Listener or both
Star or daisy-chain network topology
IEEE 1722.1 control
Integrate DSP and house-keeping functions
Fastest time-to-market AVB solution Field and AVnu plugfest proven
Easiest to use AVB endpoint solution
Simple customisation using configurable xSOFTip blocks
Field upgradeable

What our customers say?

"We selected XMOS because the company's multicore microcontroller was easy to use and their complete AVB reference design enabled us to get our product to market much faster than using our previous microcontroller designs. The XMOS architecture will give us a competitive edge in cost and overall product flexibility."
Hunter Technology

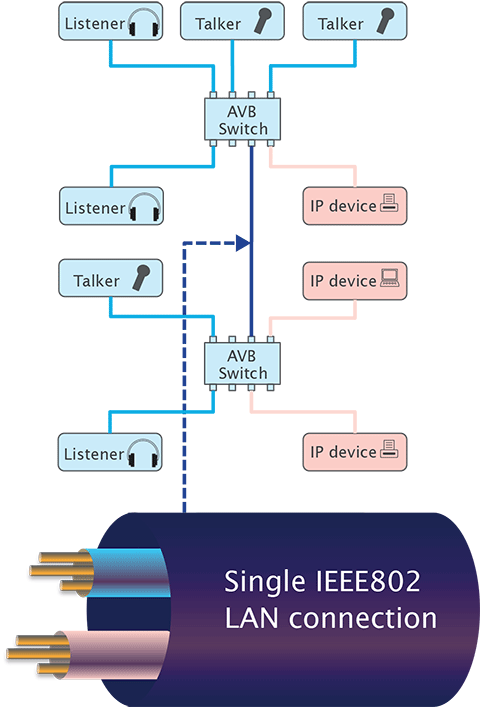

What is Ethernet AVB?

Media distribution has progressed a long way from point-to-point analog AV implementations with masses of bulky, expensive copper wiring, which required extensive knowledge to design and implement. Today's digital media networks are based on mass market items such as Cat 5 cables, switches and standard hardware components. They need to be easy to configure, take inputs from many different digital sources and output to a variety of listening hardware, all in real-time and with better quality.

Real-time digital media networks based on the Audio Visual Bridging (AVB) IEEE 802.1 standard provide the highest quality streaming AV experience, and bring major benefits to professional/automotive AV and consumer electronics.

Ethernet AVB delivers:

  • No compromise AV over mixed-use Ethernet, including:
    - Sub microsecond time synchronization
    - Precise presentation times
  • Guaranteed priority for AV traffic with:
    - Stream reservation
    - Zero data loss
  • Low latency with <2ms packet delivery for class A traffic

The AVB standard has been developed under guidance of the AVnu Alliance (www.avnu.org), which includes the world's leading AV equipment manufacturers.


Flexible AVB Solutions

The flexibility of the XMOS multicore microcontrollers make it quick and easy to configure AVB applications for many requirements.

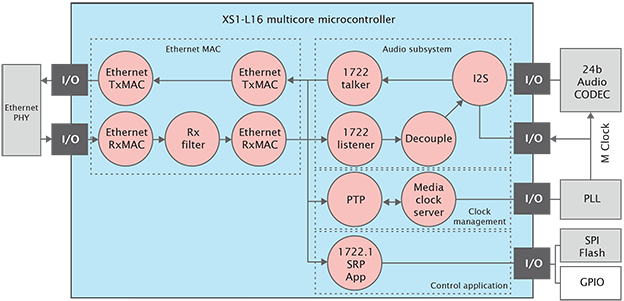

XMOS Multi-channel Ethernet AVB

Software subsystems
- 100Mbps Ethernet MAC
- Precise Timing Protocol
- Media clock recovery
- Audio streaming components, optional DSP
- Control application

Capability
- Multichannel audio (8+)
- Simultaneous talk / listen
- Control via 1722.1

Typical Application
- Multichannel recording interfaces
- Digital audio interfaces
- Mixing desks
- Audio digital signal processing systems

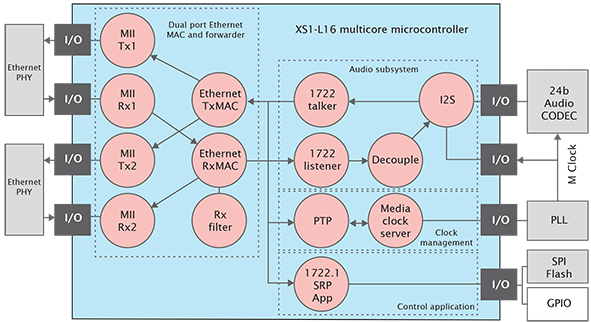

XMOS Daisy-chained Ethernet AVB

Software subsystems
- Dual 100Mbps Eth MAC
- Precise Timing Protocol
- Media clock recovery
- Audio streaming components
- Control application

Capability
- Simultaneous 4-Ch talker/4-Ch listener
- 6 level daisy chaining
- MII slave mode option

Typical Application
- Intercom systems
- Public address systems
- Paging systems
- Line array speakers
- Studio monitors


XMOS Ethernet AVB Microphone

Software subsystems
- 100Mpbs Ethernet MAC
- Precise Timing Protocol
- Media clock recovery
- Audio streaming components
- Control application

Capability
- Stereo listener or talker
- Control via 1722.1
- GPIO including I2C

Typical Application
- Intercom systems
- Public address systems
- Paging systems
- Studio microphones
- Ceiling speakers

XMOS Reference Software

The XMOS AVB software reference design includes a collection of configurable xSOFTip blocks that implement the different standards used by the AVB.

xSOFTip Standard Function in AVB Audio systems
802.1as Timing synchronization
802.1Qav Flow control
802.1Qat Stream reservation protocol
IEEE P1722 Encapsulation protocol
IEC 61883-6 Audio format for P1722
IEEE 1722.MAAP MAC Address Acquisition Protocol
IEEE1722.1 Discovery, connection management & control
Single Ethernet MAC 100Mbit Ethernet layers
Dual Ethernet MAC 100Mbit
Optional MII slave interface
Ethernet supporting daisy chain topology
Support for MII to MII connection to host MCU
Digital audio interfaces Connection to audio source/sinks
Audio DSP processing
Control processing
Integrated EQ and mixing effects
Connection and control of I/O
User specified interfaces including UART, SPI, PWM, GPIO etc. Board level interfacing
