XCORE-200

A fast, flexible and economical platform for the IoT, which delivers high performance compute, DSP, IO and control in a single device. Within the range, the XU series supports applications that need a USB interface, the XE series supports applications that need RGMII gigabit ethernet and the XL series supports applications that need a Flash memory option.

IoT
USB AUDIO
ROBOTICS
MOTION CONTROL

Key features

Multicore Compute

Performance from 1000 MIPS (at 8 cores) to 4000 MIPS (at 32 cores), with a dual-issue processor pipeline to boost peak compute performance.

Hardware Response Ports

Flexible, configurable I/O capability: 1-bit, 4-bit, 8-bit, 16-bit and 32-bit ports provide support for serialised and buffered data transfer.

Embedded Flash

Each member of the xCORE-200 family has an embedded flash option for applications.

On-chip Memory

Between 512kb and 1024kb on-chip SRAM (depending on the chip) can be accessed in a single cycle reducing shared memory requirements by passing data directly between tasks executing on logical cores.

Communication

The xconnect switch acts as a high-speed network, enabling all cores to communicate with each other.

Secure Boot

There is also an area of one-time programmable memory with AES support to implement secure boot functionality.

Discover more

PRODUCT BRIEF
DATASHEETS
BUY XCORE-200

Technical

    XE SERIES
    Part Number Logical CoresIORGMIIUSBRAMFlashOTPMIPS Datasheet Buy
    XE216-512-TQ128 16 81 1 1 512 0 16 2000 DATASHEET
    XE216-512-FB236 16 128 1 1 512 0 16 2000 DATASHEET
    XEF216-512-TQ128 16 81 1 1 512 2048 16 2000 DATASHEET
    XEF216-512-FB236 16 128 1 1 512 2048 16 2000 DATASHEET
    XE232-1024-FB374 32 176 2 2 1024 0 32 4000 DATASHEET
    XEF232-1024-FB374 32 176 2 2 1024 2048 32 4000 DATASHEET
    XU SERIES
    Part Number Logical CoresIORGMIIUSBRAMFlashOTPMIPS Datasheet Buy
    XU208-128-QF48 8 27 0 1 128 0 8 1000 DATASHEET
    XU208-256-QF48 8 27 0 1 256 0 8 1000 DATASHEET
    XU208-128-TQ64 8 33 0 1 128 0 8 1000 DATASHEET
    XU208-256-TQ64 8 33 0 1 256 0 8 1000 DATASHEET
    XUF208-128-QF48 8 27 0 1 128 1024 8 1000 DATASHEET
    XUF208-256-QF48 8 27 0 1 256 1024 8 1000 DATASHEET
    XUF208-128-TQ64 8 33 0 1 128 1024 8 1000 DATASHEET
    XUF208-256-TQ64 8 33 0 1 256 1024 8 1000 DATASHEET
    XUF208-128-TQ128 8 33 0 1 128 2048 8 1000 DATASHEET
    XU210-256-TQ128 10 81 0 1 256 0 16 2000 DATASHEET
    XU210-512-TQ128 10 81 0 1 512 0 16 2000 DATASHEET
    XU210-256-FB236 10 128 0 1 256 0 16 2000 DATASHEET
    XU210-512-FB236 10 128 0 1 512 0 16 2000 DATASHEET
    XUF210-256-TQ128 10 81 0 1 256 2048 16 2000 DATASHEET
    XUF210-512-TQ128 10 81 0 1 512 2048 16 2000 DATASHEET
    XUF210-256-FB236 10 128 0 1 256 2048 16 2000 DATASHEET
    XUF210-512-FB236 10 128 0 1 512 2048 16 2000 DATASHEET
    XU212-256-TQ128 12 81 0 1 256 0 16 2000 DATASHEET
    XU212-512-TQ128 12 81 0 1 512 0 16 2000 DATASHEET
    XU212-256-FB236 12 128 0 1 256 0 16 2000 DATASHEET
    XU212-512-FB236 12 128 0 1 512 0 16 2000 DATASHEET
    XUF212-256-TQ128 12 81 0 1 256 2048 16 2000 DATASHEET
    XUF212-512-TQ128 12 81 0 1 512 2048 16 2000 DATASHEET
    XUF212-256-FB236 12 128 0 1 256 2048 16 2000 DATASHEET
    XUF212-512-FB236 12 128 0 1 512 2048 16 2000 DATASHEET
    XU216-256-TQ128 16 81 0 1 256 0 16 2000 DATASHEET
    XU216-512-TQ128 16 81 0 1 512 0 16 2000 DATASHEET
    XU216-256-FB236 16 128 0 1 256 0 16 2000 DATASHEET
    XU216-512-FB236 16 128 0 1 512 0 16 2000 DATASHEET
    XUF216-256-TQ128 16 81 0 1 256 2048 16 2000 DATASHEET
    XUF216-512-TQ128 16 81 0 1 512 2048 16 2000 DATASHEET
    XUF216-256-FB236 16 128 0 1 256 2048 16 2000 DATASHEET
    XUF216-512-FB236 16 128 0 1 512 2048 16 2000 DATASHEET
    XU224-512-FB374 24 176 0 2 512 0 32 4000 DATASHEET
    XU224-1024-FB374 24 176 0 2 1024 0 32 4000 DATASHEET
    XUF224-512-FB374 24 176 0 2 512 2048 32 4000 DATASHEET
    XUF224-1024-FB374 24 176 0 2 1024 2048 32 4000 DATASHEET
    XU232-512-FB374 32 176 0 2 512 0 32 4000 DATASHEET
    XU232-1024-FB374 32 176 0 2 1024 0 32 4000 DATASHEET
    XUF232-512-FB374 32 176 0 2 512 2048 32 4000 DATASHEET
    XUF232-1024-FB374 32 176 0 2 1024 2048 32 4000 DATASHEET
    XL SERIES
    Part Number Logical CoresIORGMIIUSBRAMFlashOTPMIPS Datasheet Buy
    XL208-128-TQ128 8 33 0 0 128 0 8 1000 DATASHEET
    XL208-256-TQ64 8 33 0 0 256 0 8 1000 DATASHEET
    XLF208-128-TQ64 8 33 0 0 128 1024 8 1000 DATASHEET
    XLF208-256-TQ64 8 33 0 0 256 1024 8 1000 DATASHEET
    XL210-256-TQ128 10 88 0 0 256 0 16 2000 DATASHEET
    XL210-512-TQ128 10 88 0 0 512 0 16 2000 DATASHEET
    XL210-256-FB236 10 128 0 0 256 0 16 2000 DATASHEET
    XL210-512-FB236 10 128 0 0 512 0 16 2000 DATASHEET
    XLF210-256-TQ128 10 88 0 0 256 2048 16 2000 DATASHEET
    XLF210-512-TQ128 10 88 0 0 512 2048 16 2000 DATASHEET
    XLF210-256-FB236 10 128 0 0 256 2048 16 2000 DATASHEET
    XLF210-512-FB236 10 128 0 0 512 2048 16 2000 DATASHEET
    XL212-256-TQ128 12 88 0 0 256 0 16 2000 DATASHEET
    XL212-512-TQ128 12 88 0 0 512 0 16 2000 DATASHEET
    XL212-256-FB236 12 128 0 0 256 0 16 2000 DATASHEET
    XL212-512-FB236 12 128 0 0 512 0 16 2000 DATASHEET
    XLF212-256-TQ128 12 88 0 0 256 2048 16 2000 DATASHEET
    XLF212-512-TQ128 12 88 0 0 512 2048 16 2000 DATASHEET
    XLF212-256-FB236 12 128 0 0 256 2048 16 2000 DATASHEET
    XLF212-512-FB236 12 128 0 0 512 2048 16 2000 DATASHEET
    XL216-256-TQ128 16 88 0 0 256 0 16 2000 DATASHEET
    XL216-512-TQ128 16 88 0 0 512 0 16 2000 DATASHEET
    XL216-256-FB236 16 128 0 0 256 0 16 2000 DATASHEET
    XL216-512-FB236 16 128 0 0 512 0 16 2000 DATASHEET
    XLF216-256-TQ128 16 88 0 0 256 2048 16 2000 DATASHEET
    XLF216-512-TQ128 16 88 0 0 512 2048 16 2000 DATASHEET
    XLF216-256-FB236 16 128 0 0 256 2048 16 2000 DATASHEET
    XLF216-512-FB236 16 128 0 0 512 2048 16 2000 DATASHEET
    XL224-512-FB374 24 176 0 0 512 0 32 4000 DATASHEET
    XL224-1024-FB374 24 176 0 0 1024 0 32 4000 DATASHEET
    XLF224-512-FB374 24 176 0 0 512 2048 32 4000 DATASHEET
    XLF224-1024-FB374 24 176 0 0 1024 2048 32 4000 DATASHEET
    XL232-512-FB374 32 176 0 0 512 0 32 4000 DATASHEET
    XL232-1024-FB374 32 176 0 0 1024 0 32 4000 DATASHEET
    XLF232-512-FB374 32 176 0 0 512 2048 32 4000 DATASHEET
    XLF232-1024-FB374 32 176 0 0 1024 2048 32 4000 DATASHEET

    Start your development with the

    XCORE-200
    EVALUATION KIT

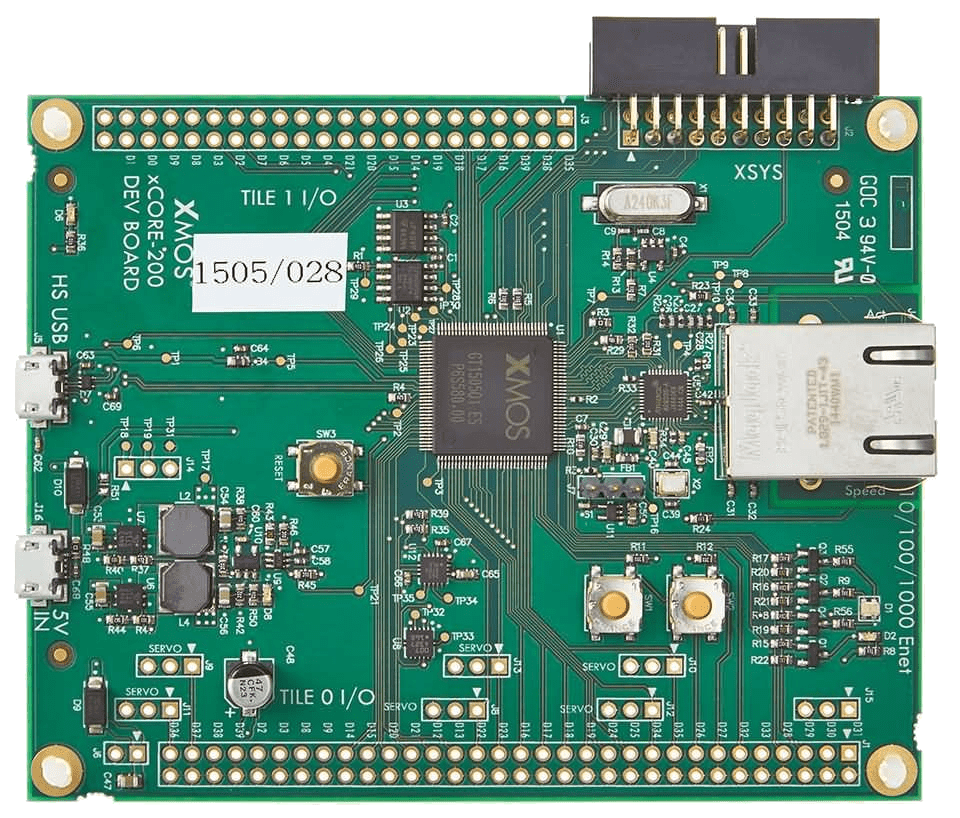

    The XCORE-200 Evaluation Kit features the XE216-512-TQ128 device with sixteen logical cores delivering up to 2000MIPS deterministically. The high-speed USB interface, 10/100/100 Mbps Ethernet interface and 53 high-performance GPIO make it ideal for a wide range of applications, including networking and digital audio. The board also includes six servo interfaces for rapid prototyping of motor and motion control projects.

    The kit also contains an XTAG debug adapter and is fully supported by the XTC Tools development environment.

    Our kit features

    • xcore-200 (XE216-512-TQ128) Multicore Microcontroller
    • 32 GPIO connections from tile 0, arranged on a 0.1” grid
    • 21 GPIO connections from tile 1, arranged on a 0.1” grid
    • A micro USB connector for connection to a USB device
    • A micro USB connector for connection to a power supply
    • An RGMII connector for connection to a 10/100/1000Mbps ethernet network
    • An xSYS connector for connection to an xTAG debug adapter
    • Two general purpose push-button switches
    • A reset switch
    • Six servo connections
    • A general purpose green LED
    • A general purpose RGB LED
    • A QSPI flash
    • A green 3.3v power-good LED
    • R: Two power supply headers
    • 24MHz Oscillator

    Buy the kit

    Get Started

    Developer Resources

      Documentation
      TitleVersionDateDownload
      Design Advisory: xcore-200 Evaluation Kit (XK-EVK-XE216) 2024-04-05 pdf
      XE216-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XE216-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XE232-1024-FB374 Datasheet 1.16 2018-09-06 pdf
      XL208-128-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL208-256-TQ64 Datasheet 1.16 2018-09-06 pdf
      XL210-256-FB236 Datasheet 1.16 2018-09-06 pdf
      XL210-256-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL210-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XL210-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL212-256-FB236 Datasheet 1.16 2018-09-06 pdf
      XL212-256-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL212-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XL212-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL216-256-FB236 Datasheet 1.16 2018-09-06 pdf
      XL216-256-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL216-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XL216-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XL224-1024-FB374 Datasheet 1.16 2018-09-06 pdf
      XL224-512-FB374 Datasheet 1.16 2018-09-06 pdf
      XL232-1024-FB374 Datasheet 1.16 2018-09-06 pdf
      XL232-512-FB374 Datasheet 1.16 2018-09-06 pdf
      XU208-128-QF48 Datasheet 1.16 2018-09-06 pdf
      XU208-128-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU208-128-TQ64 Datasheet 1.16 2018-09-06 pdf
      XU208-256-QF48 Datasheet 1.16 2018-09-06 pdf
      XU208-256-TQ64 Datasheet 1.16 2018-09-06 pdf
      XU210-256-FB236 Datasheet 1.16 2018-09-06 pdf
      XU210-256-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU210-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XU210-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU212-256-FB236 Datasheet 1.16 2018-09-06 pdf
      XU212-256-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU212-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XU212-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU216-256-FB236 Datasheet 1.16 2018-09-06 pdf
      XU216-256-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU216-512-FB236 Datasheet 1.16 2018-09-06 pdf
      XU216-512-TQ128 Datasheet 1.16 2018-09-06 pdf
      XU224-1024-FB374 Datasheet 1.16 2018-09-06 pdf
      XU224-512-FB374 Datasheet 1.16 2018-09-06 pdf
      XU232-1024-FB374 Datasheet 1.16 2018-09-06 pdf
      XU232-512-FB374 Datasheet 1.16 2018-09-06 pdf
      xCORE-200: The XMOS XS2 Architecture (ISA) 1.1 2015-11-26 pdf
      xcore-200 Product Brief 2.0 2024-04-10 pdf
      Application Notes
      🔍
      Libraries
      🔍
      Hardware Files
      TitleVersionDateDownload
      XCORE-200 Evaluation Kit Board Design Files 1V3 2024-04-08 zip
      XU316-1024-FB265 BSDL File 1.0 2025-02-04 bsd
      XU316-1024-QF60 BSDL File 1.0 2025-02-04 bsd
      XU316-1024-TQ128 BSDL File 2025-02-10 bsd
