# Decimator Stages¶

The mic array unit provided by this library uses a two-stage decimation process to convert a high sample rate stream of (1-bit) PDM samples into a lower sample rate stream of (32-bit) PCM samples.

Below is a simplified model of the mic array unit.

```
_____________________________________________________________
| ______________ ______________ |
| | | | | |
Port | A | Stage 1 | B | Stage 2 | C |
--->|------>| Decimating |----------->| Decimating |--------->|--> App
| | FIR Filter | | FIR Filter | |
| |______________| |______________| |
|_____________________________________________________________|
Stream A - ( 1-bit) PDM samples @ PDM_FREQ smp/sec
Stream B - (32-bit) PCM samples @ (PDM_FREQ/32) smp/sec
Stream C - (32-bit) PCM samples @ (PDM_FREQ/(32*S2_DEC_FACTOR)) smp/sec
```

The first stage filter is a decimating FIR filter with a fixed tap count
(`S1_TAP_COUNT`

) of `256`

and a fixed decimation factor (`S1_DEC_FACTOR`

)
of `32`

.

The second stage decimator is a fully configurable FIR filter with tap count
`S2_TAP_COUNT`

and a decimation factor of `S2_DEC_FACTOR`

(this may be
`1`

).

## Decimator Stage 1¶

For the first stage decimating FIR filter, the actual filter coefficients used
are configurable, so an application is free to use a custom first stage filter,
as long as the tap count is `256`

. This library also provides coefficients for
the first stage filter, whose filter characteristics are adequate for most
applications.

### Filter Implementation¶

The input to the first stage decimator (here called “Stream A”) is a stream of
1-bit PDM samples with a sample rate of `PDM_FREQ`

. Rather than each PDM
sample representing a value of `0`

or `1`

, each PDM sample represents a
value of either `+1`

or `-1`

. Specifically, on-chip and in-memory, a bit
value of `0`

represents `+1`

and a bit value of `1`

represents `-1`

.

The output from the first stage decimator, Stream B, is a stream of 32-bit PCM
samples with a sample rate of `PDM_FREQ/S1_DEC_FACTOR = PDM_FREQ/32`

. For
example, if `PDM_FREQ`

is 3.072 MHz, then Stream B’s sample rate is 96.0 kHz.

The first stage filter is structured to make optimal use of the xCore XS3 vector processing unit (VPU), which is able to compute the dot product of a pair of 256-element 1-bit vectors in a single cycle. The first stage uses 256 16-bit coefficients for its filter taps.

The signature of the filter function is

```
int32_t fir_1x16_bit(uint32_t signal[8], uint32_t coeff_1[]);
```

Each time 32 PDM samples (1 word) become available for an audio channel, those
samples are shifted into the 8-word (256-bit) filter state, and call to
`fir_1x16_bit`

results in 1 Stream B sample element for that channel.

The actual implementation for the first stage filter can be found in
`src/fir_1x16_bit.S`

. Additional usage details can be found in
`api/etc/fir_1x16_bit.h`

.

Note that the 256 16-bit filter coefficients are **not** stored in memory as a
standard coefficient array (i.e. `int16_t filter[256] = {b[0], b[1], ... };`

).
Rather, in order to take advantage of the XS3 VPU, the coefficients must be
rearranged bit-by-bit into a block form suitable for VPU processing. See the
section below on filter conversion if you wish to supply your own filter for
stage 1.

### Provided Filter¶

This library provides filter coefficients that may be used with the first stage
decimator. These coefficients are available in your application through the
header `mic_array/etc/filters_default.h`

as `stage1_coef`

.

#### Characteristics¶

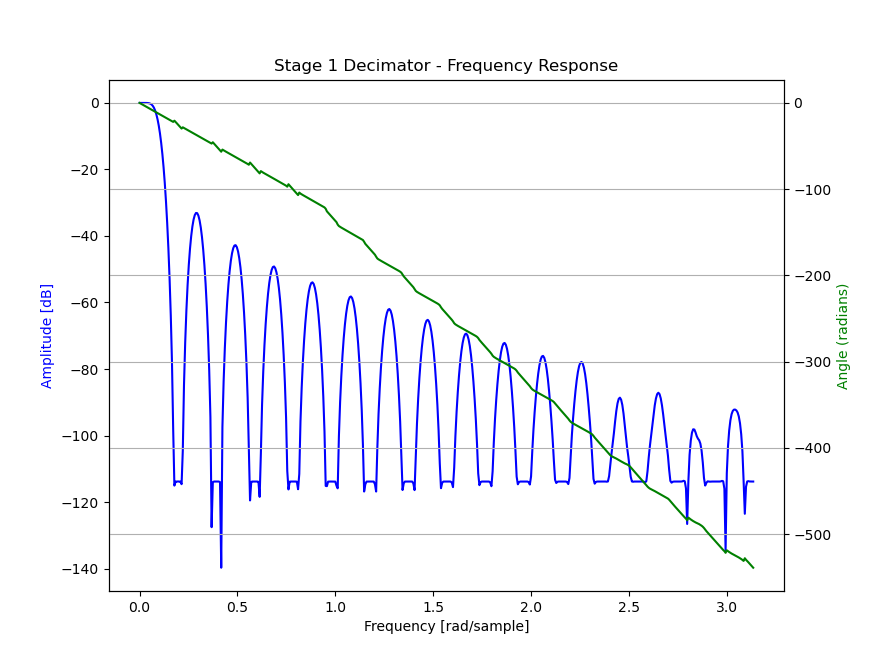

The plot below indicates the frequency response of the provided first stage decimation filter.

### Filter Conversion Script¶

Taking a set of floating-point coefficients, quantizing them into 16-bit coefficients and ‘boggling’ them into the correct memory layout can be quite a tricky business. To simplify this process, this library provides a Python (3) script which does this process for you.

The script can be found in this repository at `script/stage1.py`

.

<!– @TODO Fix Script. It is currently set up to look for a specific `.pkl`

file and pull coefficients from there. It should be redone properly with helpful
`argparse`

output and hints. –>

## Decimator Stage 2¶

An application is free to supply its own second stage filter. This library also provides a second stage filter whose characteristics are adequate for many or most applications.

### Filter Implementation¶

The input to the second stage decimator (here called “Stream B”) is the stream
of 32-bit PCM samples emitted from the first stage decimator with a sample rate
of `PDM_FREQ/32`

.

The output from the second stage decimator, Stream C, is a stream of 32-bit PCM
samples with a sample rate of `PDM_FREQ/(32*S2_DEC_FACTOR)`

. For example, if
`PDM_FREQ`

is 3.072 MHz, and `S2_DEC_FACTOR`

is `6`

, then Stream C’s
sample rate (the sample rate at which the application runs) is

3.072 MHz / (32*6) = 16 kHz

The second stage filter uses the 32-bit FIR filter implementation from
`lib_xs3_math`

(@TODO: link to github). See `xs3_filter_fir_s32()`

in that
library for more implementation details. Decimation is achieved using by
effectively discarding `S2_DEC_FACTOR-1`

of every `S2_DEC_FACTOR`

output
samples.

### Provided Filter¶

This library provides a filter suitable for the second stage decimator. It is
available in your application through the header
`mic_array/etc/filters_default.h`

.

For the provided filter `S2_TAP_COUNT = 65`

, and `S2_DEC_FACTOR=6`

.

#### Characteristics¶

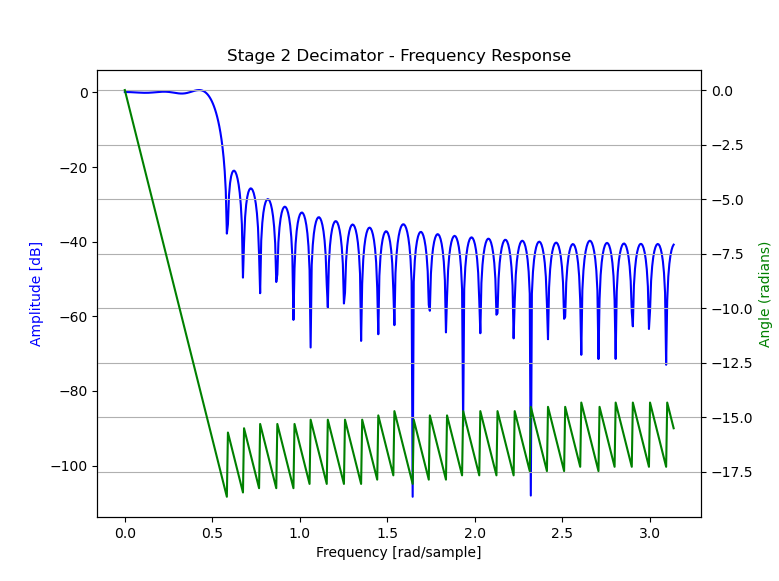

The plot below indicates the frequency response of the provided second stage decimation filter.
