Developing multichannel and Hi-Res USB audio solutions

Our flexible multicore microcontrollers are easy to programme, pack big processing power and enable you to implement functions alongside USB that traditionally require dedicated hardware. So if you’re looking for real-time, high-performance processing, flexible silicon that gives you scalable solutions and shorter go-to market timescales then take a look at our xCore-200 range. It’s ideal for hi-res consumer audio and complex multichannel professional audio applications.

Asynchronous clock

Ideal for bit perfect transfer of audio data, including I2C, TDM, S/PDIF, DSD and ADAT

Multiple channels

Ideal for multichannel audio applications that need high-performance, scalable channel counts from 1 to 32.

Low latency

Ideal for Hi-Res audio products that stream low jitter, bit perfect audio: PCM 384kHz, DSD512, DoP.

xCORE-200 multicore microcontrollers are available in a range of resource densities, packages, performance and temperature grades to fit your needs. And our engineers are on hand to help you move rapidly from prototype to tuning, and from testing to volume production with world-class audio products.

Development Kit

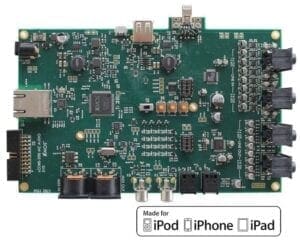

XK-AUDIO-216-MC-ABL

  • USB compliant device

    • USB Audio Class 2.0 device
    • Optional Audio Class 1.0 fall-back
    • Low loopback latency: 3 ms
    • Self-powered (with Apple charging) or bus-powered

    Bitperfect USB audio transfer

    • Asynchronous Isochronous from/to hosto
    • PCM ≤384kHz at 16, 24 or 32bits
    • Native DSD64 and DSD128
    • DoP64 and DoP128
    • Local crystal low-jitter audio clocking

    AVB standards compliant

    • Time synchronization: 802.1AS
    • Traffic shaping: 802.1Qav
    • Bandwidth reservation: 802.1Qat
    • Media transport: IEEE 1722
    • Discovery and management: 1722.1

    Bit perfect network audio transfero

    • PLL recovery of AVB clock

    10/100/1000Mbit Ethernet connectivity

    • Simultaneous talker and listener

    FlexibleI/O

    • Up to 32 in / 32 out channels via TDM
    • 8-channel analog input and output
    • S/PDIF optical/coaxial optical input and output
    • ADAT input and outputo MIDI input and outputo 16 x 16 channel mixer

    Multiple OS support:

    • Windows
    • Mac OSX
    • Apple iOS
    • Android

Development Kit

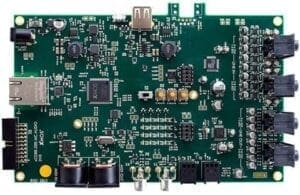

XK-AUDIO-216-MC-AB

  • USB compliant device

    • USB Audio Class 2.0 device
    • Optional Audio Class 1.0 fall-back
    • Low loopback latency: 3 ms
    • Self-powered or bus-powered

    Bitperfect USB audio transfer

    • Asynchronous Isochronous from/to hosto
    • PCM ≤384kHz at 16, 24 or 32bits
    • Native DSD64 and DSD128
    • DoP64 and DoP128
    • Local crystal low-jitter audio clocking

    AVB standards compliant

    • Time synchronization: 802.1AS
    • Traffic shaping: 802.1Qav
    • Bandwidth reservation: 802.1Qat
    • Media transport: IEEE 1722
    • Discovery and management: 1722.1

    Bit perfect network audio transfero

    • PLL recovery of AVB clock

    10/100/1000Mbit Ethernet connectivity

    • Simultaneous talker and listener

    FlexibleI/O

    • Up to 32 in / 32 out channels via TDM
    • 8-channel analog input and output
    • S/PDIF optical/coaxial optical input and output
    • ADAT input and outputo MIDI input and outputo 16 x 16 channel mixer

    Multiple OS support:

    • Windows
    • Mac OSX
    • Apple iOS
    • Android

Silicon

The general-purpose L-series (XL/XLF) lets you decide the exact range of interfaces, algorithms and control software your application requires. It offers a peak compute performance of 4000MIPS and up to 1024KB on-chip SRAM memory. Plus there’s an embedded flash option for applications where additional security is required.

The XU/XUF series (USB-enabled) with integrated USB 2.0 PHYs are ideal for all USB Audio applications. Package sizes include the 48pin QFP packages (ideal for headphones and USB DACs), 16 core devices in TQFP and FGBA packages and top of the range 32-core devices with two USB PHYs. Combined with our USB Audio 2.0 software solutions (which enable MFi developers to design Apple devices that operate in USB Host Mode and in USB Device Mode with support for USB Role Switch) these devices deliver the speed and efficiency, robust bit perfect audio streaming and flexible-format audio connectivity required by today’s audio applications.
